Please send RFQ , we will respond immediately.

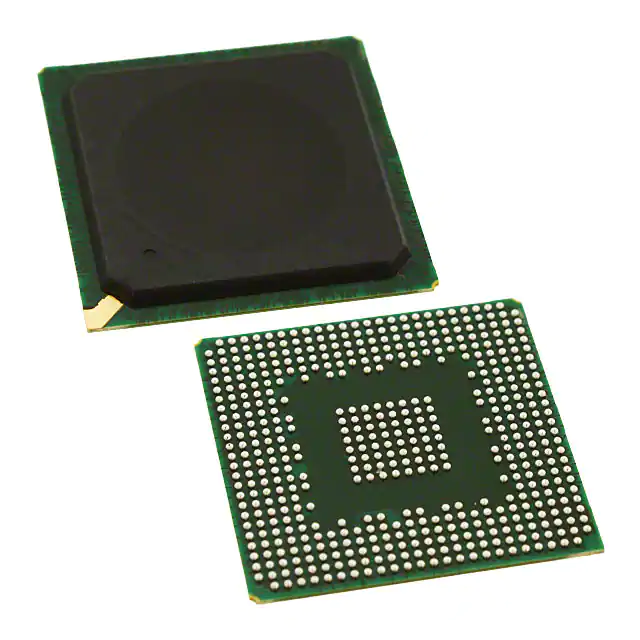

| Part Number | MPC8313CZQADDB | MPC8313ZQADDB | MPC8313CZQADDC | MPC8313ECZQADDB | MPC8313EZQADDB | MPC8313CZQADD |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Core Processor | PowerPC e300c3 | PowerPC e300c3 | PowerPC e300c3 | PowerPC e300c3 | PowerPC e300c3 | PowerPC e300c3 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 267MHz | 267MHz | 267MHz | 267MHz | 267MHz | 267MHz |
| Co-Processors/DSP | - | - | - | Security; SEC 2.2 | Security; SEC 2.2 | - |
| RAM Controllers | DDR, DDR2 | DDR, DDR2 | DDR, DDR2 | DDR, DDR2 | DDR, DDR2 | DDR, DDR2 |
| Graphics Acceleration | No | No | No | No | No | No |
| Display & Interface Controllers | - | - | - | - | - | - |
| Ethernet | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) |
| SATA | - | - | - | - | - | - |
| USB | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) |
| Voltage - I/O | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) | 0°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | 0°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Security Features | - | - | - | Cryptography | Cryptography | - |
| Package / Case | 516-BBGA Exposed Pad | 516-BBGA Exposed Pad | 516-BBGA Exposed Pad | 516-BBGA Exposed Pad | 516-BBGA Exposed Pad | 516-BBGA Exposed Pad |
| Supplier Device Package | 516-TEPBGA (27x27) | 516-TEPBGA (27x27) | 516-TEPBGA (27x27) | 516-TEPBGA (27x27) | 516-TEPBGA (27x27) | 516-TEPBGA (27x27) |
