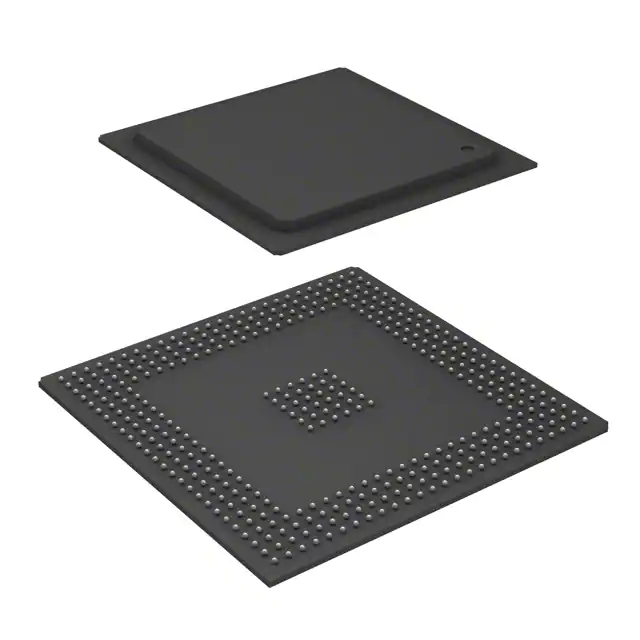

| Part Number | MPC564MZP66 | MPC561MZP66 | MPC562MZP66 | MPC564CZP66 | MPC564MZP56 |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Not For New Designs | Active |
| Core Processor | PowerPC | PowerPC | PowerPC | PowerPC | PowerPC |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 66MHz | 66MHz | 66MHz | 66MHz | 56MHz |
| Connectivity | CANbus, EBI/EMI, SCI, SPI, UART/USART | CANbus, EBI/EMI, SCI, SPI, UART/USART | CANbus, EBI/EMI, SCI, SPI, UART/USART | CANbus, EBI/EMI, SCI, SPI, UART/USART | CANbus, EBI/EMI, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 56 | 64 | 64 | 56 | 56 |
| Program Memory Size | 512KB (512K x 8) | - | - | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | ROMless | ROMless | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 2.7V | 2.5V ~ 2.7V | 2.5V ~ 2.7V | 2.5V ~ 2.7V | 2.5V ~ 2.7V |
| Data Converters | A/D 32x10b | A/D 32x10b | A/D 32x10b | A/D 32x10b | A/D 32x10b |
| Oscillator Type | External | External | External | External | External |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 388-BBGA | 388-BBGA | 388-BBGA | 388-BBGA | 388-BBGA |
| Supplier Device Package | 388-PBGA (27x27) | 388-PBGA (27x27) | 388-PBGA (27x27) | 388-PBGA (27x27) | 388-PBGA (27x27) |
