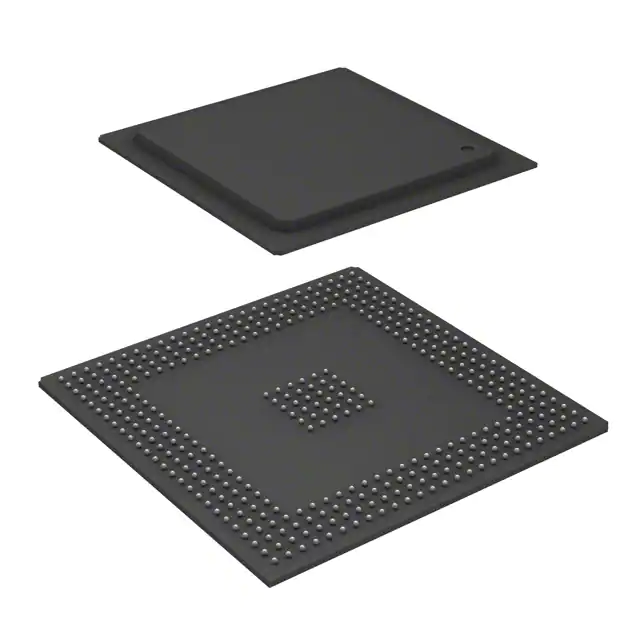

| Part Number | MPC564CZP40 | MPC565CZP40 | MPC566CZP40 | MPC534CZP40 | MPC561CZP40 | MPC562CZP40 | MPC563CZP40 |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Motorola | NXP USA Inc. | NXP USA Inc. | Motorola | Motorola | Freescale Semiconductor |
| Product Status | Not For New Designs | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Core Processor | PowerPC | PowerPC | PowerPC | PowerPC | PowerPC | PowerPC | PowerPC |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz |
| Connectivity | CANbus, EBI/EMI, SCI, SPI, UART/USART | CANbus, EBI/EMI, SCI, SPI, UART/USART | CANbus, EBI/EMI, SCI, SPI, UART/USART | CANbus, EBI/EMI, SCI, SPI, UART/USART | CANbus, EBI/EMI, SCI, SPI, UART/USART | CANbus, EBI/EMI, SCI, SPI, UART/USART | CANbus, EBI/EMI, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 56 | 56 | 56 | 56 | 64 | 16 | 16 |
| Program Memory Size | 512KB (512K x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 512KB (512K x 8) | - | - | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | ROMless | ROMless | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 32K x 8 | 36K x 8 | 36K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 2.7V | 2.5V ~ 2.7V | 2.5V ~ 2.7V | 2.5V ~ 2.7V | 2.5V ~ 2.7V | 2.5V ~ 2.7V | 2.5V ~ 2.7V |
| Data Converters | A/D 32x10b | A/D 40x10b | A/D 40x10b | A/D 16x10b | A/D 32x10b | A/D 32x10b | A/D 32x10b |
| Oscillator Type | External | External | External | External | External | External | External |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 388-BBGA | 388-BBGA | 388-BBGA | 388-BBGA | 388-BBGA | 388-BBGA | 388-BBGA |
| Supplier Device Package | 388-PBGA (27x27) | 388-PBGA (27x27) | 388-PBGA (27x27) | 388-PBGA (27x27) | 388-PBGA (27x27) | 388-PBGA (27x27) | 388-PBGA (27x27) |
