| Part Number | MPC5553MVR132 | MPC5553MVZ132 | MPC5554MVR132 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Not For New Designs |
| Core Processor | e200z6 | e200z6 | e200z6 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 132MHz | 132MHz | 132MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, SCI, SPI | CANbus, EBI/EMI, Ethernet, SCI, SPI | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 220 | 220 | 256 |
| Program Memory Size | 1.5MB (1.5M x 8) | 1.5MB (1.5M x 8) | 2MB (2M x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 64K x 8 | 64K x 8 | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.35V ~ 1.65V | 1.35V ~ 1.65V | 1.35V ~ 1.65V |
| Data Converters | A/D 40x12b | A/D 40x12b | A/D 40x12b |
| Oscillator Type | External | External | External |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

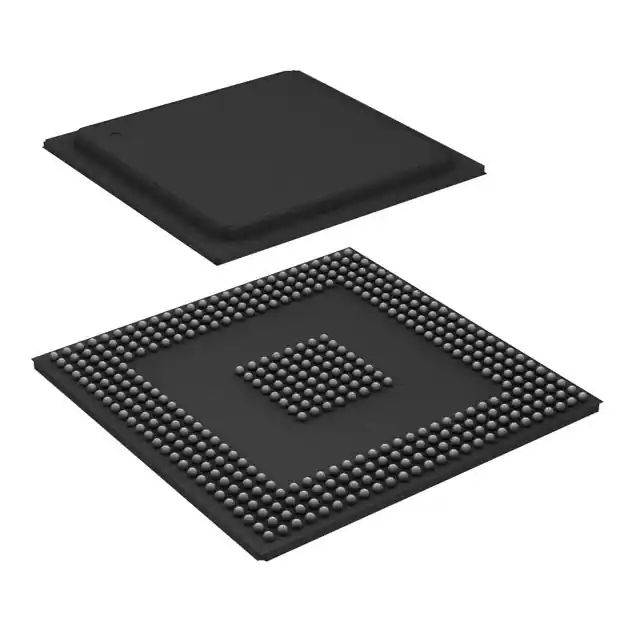

| Package / Case | 416-BBGA | 324-BBGA | 416-BBGA |
| Supplier Device Package | 416-PBGA (27x27) | 324-PBGA (23x23) | 416-PBGA (27x27) |
