| Part Number | MMG3006NT1 | MMG3009NT1 | MMG3007NT1 | MMG3008NT1 | MMG3001NT1 | MMG3002NT1 | MMG3003NT1 | MMG3004NT1 | MMG3005NT1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | Freescale Semiconductor | NXP USA Inc. | Freescale Semiconductor | Freescale Semiconductor | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Obsolete | Active | Obsolete |
| Frequency | 400MHz ~ 2.4GHz | 0Hz ~ 6GHz | 0Hz ~ 6GHz | 0Hz ~ 6GHz | 40MHz ~ 3.6GHz | 40MHz ~ 3.6GHz | 40MHz ~ 3.6GHz | 400MHz ~ 2.2GHz | 800MHz ~ 2.2GHz |
| P1dB | 33dBm | 18dBm | 16dBm | 15dBm | 18.5dBm | 21dBm | 24dBm | 27dBm | 30dBm |
| Gain | 17.5dB | 15dB | 19dB | 18.5dB | 20dB | 20dB | 20dB | 17dB | 15dB |
| Noise Figure | 6.6dB | 4.2dB | 3.8dBm | 4dB | 4.1dB | 4.2dB | 4dB | 3.4dB | 5dB |
| RF Type | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | General Purpose | General Purpose | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL |
| Voltage - Supply | 5V | 5V | 5V | 5V | 5.6V | 5.2V | 6.2V | 5V | 5V |
| Current - Supply | 850mA | 70mA | 47mA | 38mA | 58mA | 110mA | 180mA | 250mA | 480mA |
| Test Frequency | 900MHz | 900MHz | 900MHz | 900MHz | 900MHz | 900MHz | 900MHz | 2.14GHz | 2.14GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | - | Surface Mount |

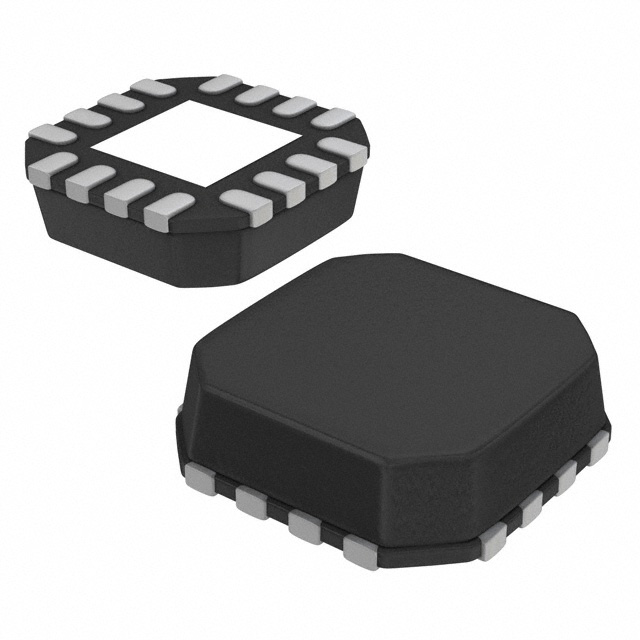

| Package / Case | 16-VQFN Exposed Pad | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA | 16-QFN Exposed Pad | 16-QFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) | SOT-89-4 | SOT-89-4 | SOT-89-4 | SOT-89 | SOT-89-4 | SOT-89-4 | 16-PQFN (5x5) | 16-PQFN (5x5) |
