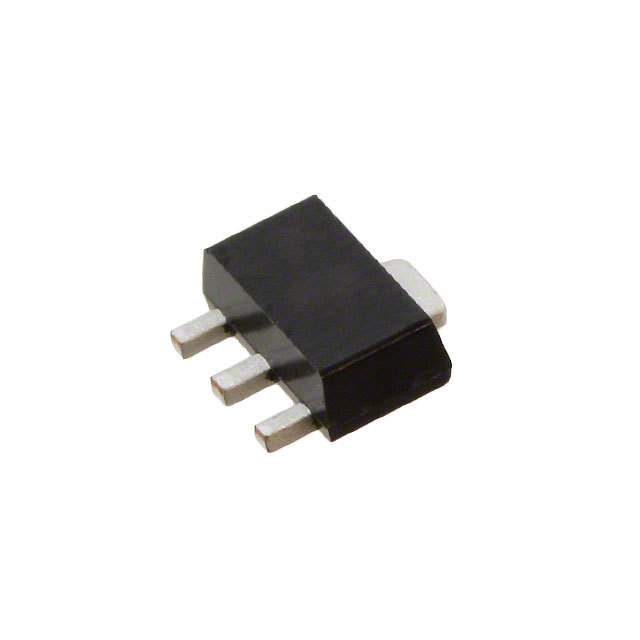

| Part Number | MMG3003NT1 | MMG3009NT1 | MMG3013NT1 | MMG3004NT1 | MMG3006NT1 | MMG3007NT1 | MMG3005NT1 | MMG3008NT1 | MMG3001NT1 | MMG3002NT1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | Freescale Semiconductor | Freescale Semiconductor | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | Freescale Semiconductor |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active | Active |
| Frequency | 40MHz ~ 3.6GHz | 0Hz ~ 6GHz | 0Hz ~ 6GHz | 400MHz ~ 2.2GHz | 400MHz ~ 2.4GHz | 0Hz ~ 6GHz | 800MHz ~ 2.2GHz | 0Hz ~ 6GHz | 40MHz ~ 3.6GHz | 40MHz ~ 3.6GHz |
| P1dB | 24dBm | 18dBm | - | 27dBm | 33dBm | 16dBm | 30dBm | 15dBm | 18.5dBm | 21dBm |
| Gain | 20dB | 15dB | 20dB | 17dB | 17.5dB | 19dB | 15dB | 18.5dB | 20dB | 20dB |
| Noise Figure | 4dB | 4.2dB | - | 3.4dB | 6.6dB | 3.8dBm | 5dB | 4dB | 4.1dB | 4.2dB |
| RF Type | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | Cellular, PCS, PHS, WLL | General Purpose | General Purpose |
| Voltage - Supply | 6.2V | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5.6V | 5.2V |
| Current - Supply | 180mA | 70mA | 90mA | 250mA | 850mA | 47mA | 480mA | 38mA | 58mA | 110mA |
| Test Frequency | 900MHz | 900MHz | - | 2.14GHz | 900MHz | 900MHz | 2.14GHz | 900MHz | 900MHz | 900MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | 16-QFN Exposed Pad | 16-VQFN Exposed Pad | TO-243AA | 16-QFN Exposed Pad | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | SOT-89-4 | SOT-89-4 | SOT-89-4 | 16-PQFN (5x5) | 16-QFN (4x4) | SOT-89-4 | 16-PQFN (5x5) | SOT-89-4 | SOT-89 | SOT-89-4 |
