| Part Number | MKL14Z64VFT4 | MKL16Z64VFT4 | MKL15Z64VFT4 | MKL24Z64VFT4 | MKL14Z64VFT4R | MKL14Z64VFM4 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, TSI, UART/USART | I²C, LINbus, SPI, TSI, UART/USART | I²C, LINbus, SPI, UART/USART, USB, USB OTG | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT |
| Number of I/O | 40 | 40 | 40 | 36 | 40 | 28 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 15x12b | A/D - 16bit; D/A - 12bit | A/D 15x16b; D/A 1x12b | A/D 13x12b | A/D 15x12b | A/D 9x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Wettable Flank |

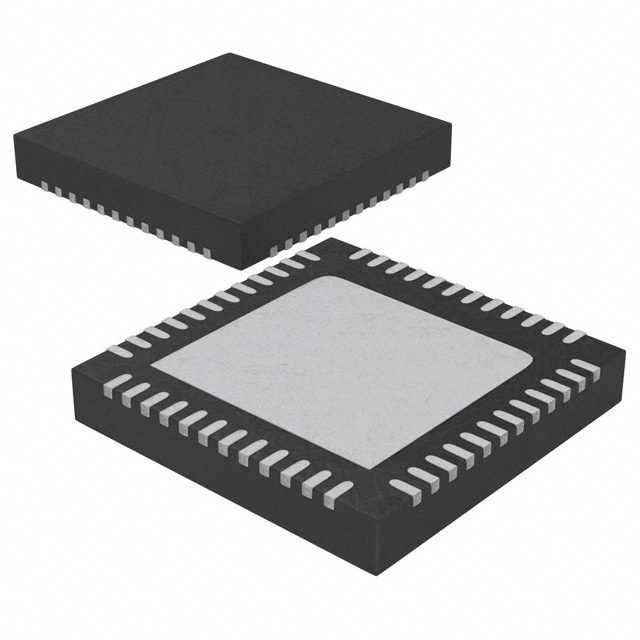

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) | 48-QFN (7x7) | 48-QFN (7x7) | 48-QFN (7x7) | 48-QFN (7x7) | 32-HVQFN (5x5) |
