| Part Number | MK22FN512VDC12R | MK22FN512VDC12 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 120MHz |
| Connectivity | I²C, IrDA, SPI, UART/USART, USB, USB OTG | I²C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O | 81 | 81 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | - | - |
| RAM Size | 128K x 8 | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 38x16b; D/A 2x12b | A/D 38x16b; D/A 2x12b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

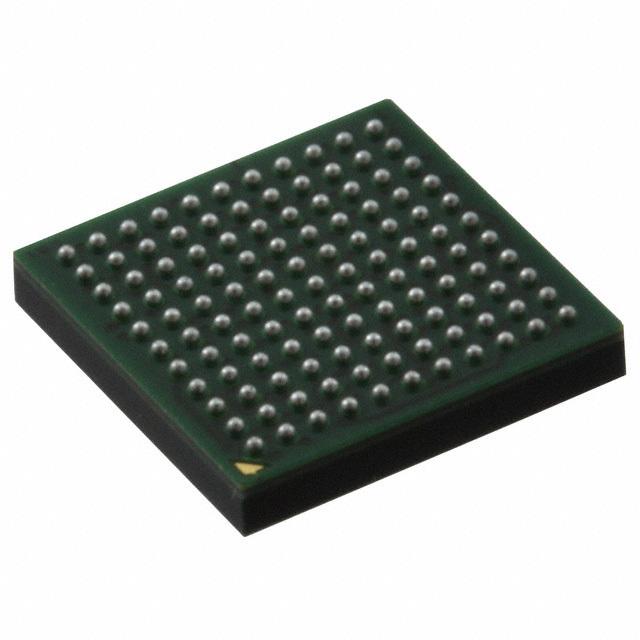

| Package / Case | 121-XFBGA | 121-XFBGA |
| Supplier Device Package | 121-XFBGA (8x8) | 121-XFBGA (8x8) |
