Please send RFQ , we will respond immediately.
| Part Number | MK22FN1M0VLQ12 | MK24FN1M0VLQ12 | MK22FN1M0VLQ12R | MK20FN1M0VLQ12 | MK21FN1M0VLQ12 | MK22FN1M0AVLQ12 | MK22FN1M0VLH12 | MK22FN1M0VLK12 | MK22FN1M0VLL12 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | Freescale Semiconductor | Freescale Semiconductor | NXP USA Inc. |
| Product Status | Not For New Designs | Active | Not For New Designs | Active | Active | Active | Active | Active | Not For New Designs |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 120MHz | 120MHz | 120MHz | 120MHz | 120MHz | 120MHz | 120MHz | 120MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG | CANbus, I²C, IrDA, SPI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O | 100 | 100 | 100 | 100 | 104 | 100 | 40 | 56 | 66 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - |
| RAM Size | 128K x 8 | 256K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 42x16b; D/A 2x12b | A/D 41x16b; D/A 2x12b | A/D 42x16b; D/A 2x12b | A/D 58x16b; D/A 2x12b | A/D 2x16b; D/A 2x12b | A/D 42x16b; D/A 2x12b | A/D 22x16b; D/A 1x12b | A/D 27x16b; D/A 1x12b | A/D 33x16b; D/A 1x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

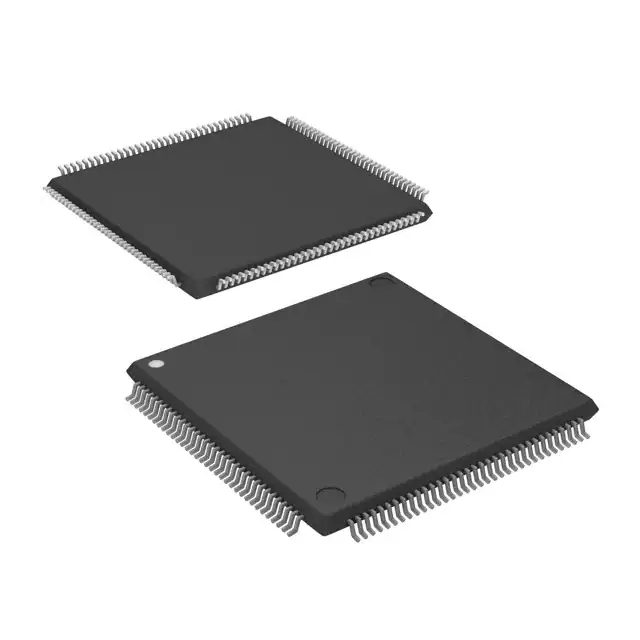

| Package / Case | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 64-LQFP | 80-LQFP | 100-LQFP |
| Supplier Device Package | 144-LQFP (20x20) | 144-LQFP (20x20) | 144-LQFP (20x20) | 144-LQFP (20x20) | 144-LQFP (20x20) | 144-LQFP (20x20) | 64-LQFP (10x10) | 80-FQFP (12x12) | 100-LQFP (14x14) |
