| Part Number | MK20DX64VFT5 | MK20DN64VFT5 | MK20DX64VFM5 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 50MHz | 50MHz | 50MHz |
| Connectivity | I²C, IrDA, SPI, UART/USART, USB, USB OTG | I²C, IrDA, SPI, UART/USART, USB, USB OTG | I²C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O | 29 | 29 | 20 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | 2K x 8 | - | 2K x 8 |
| RAM Size | 16K x 8 | 16K x 8 | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 11x16b | A/D 11x16b | A/D 6x16b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount, Wettable Flank |

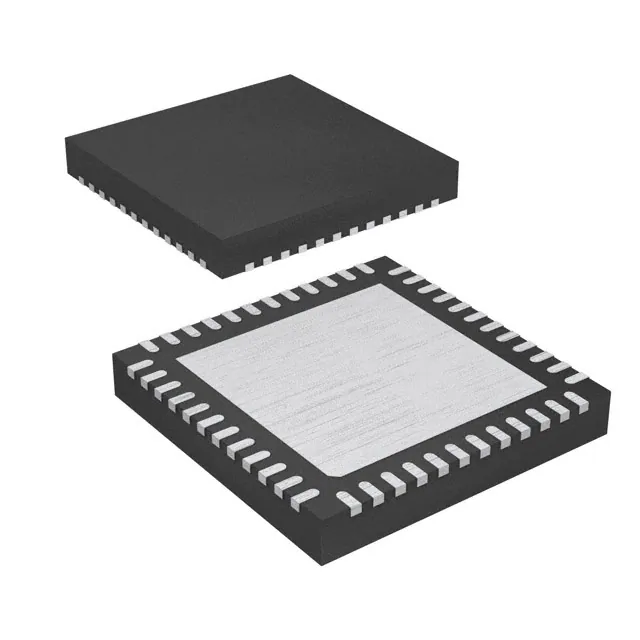

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN-EP (7x7) | 48-QFN-EP (7x7) | 32-HVQFN (5x5) |
