| Part Number | MK10DX128VMC7 | MK10DX128VMC7R | MK10DX128VMB7 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Obsolete |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 72MHz | 72MHz | 72MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART | CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART | CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O | 74 | 74 | 57 |
| Program Memory Size | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | 2K x 8 | 2K x 8 | 2K x 8 |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 39x16b; D/A 1x12b | A/D 39x16b; D/A 1x12b | A/D 39x16b; D/A 1x12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

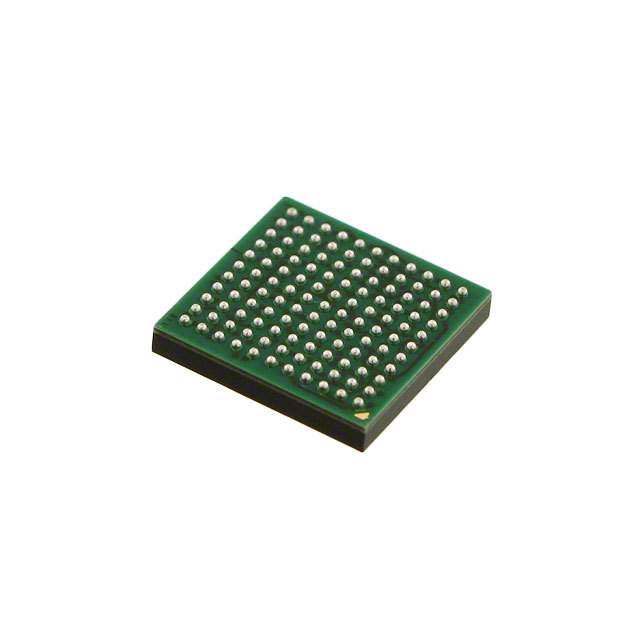

| Package / Case | 121-LFBGA | 121-LFBGA | 81-LBGA |
| Supplier Device Package | 121-MAPBGA (8x8) | 121-MAPBGA (8x8) | 81-MAPBGA (10x10) |
