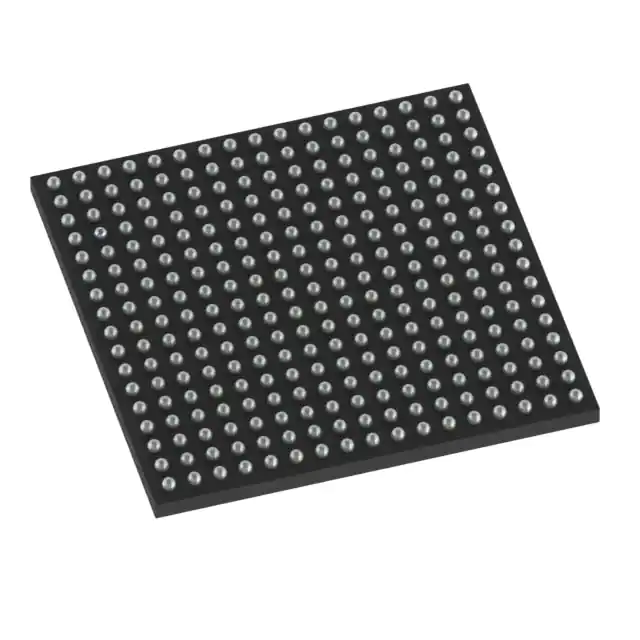

| Part Number | MIMXRT117FDVMAA | MIMXRT1171DVMAA | MIMXRT1172DVMAA | MIMXRT1175DVMAA | MIMXRT1176DVMAA |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 1GHz | 800MHz | 800MHz | 800MHz | 800MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 13 | - | - | - | - |
| Program Memory Size | 256KB (256K x 8) | - | - | - | - |
| Program Memory Type | ROM | External Program Memory | External Program Memory | External Program Memory | External Program Memory |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 2M x 8 | 2M x 8 | 2M x 8 | 2M x 8 | 2M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.95V | - | - | - | - |
| Data Converters | A/D 2x12b; D/A 1x12b | A/D 2x12b; D/A 1x12b | A/D 2x12b; D/A 1x12b | A/D 2x12b; D/A 1x12b | A/D 2x12b; D/A 1x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 289-LFBGA | 289-LFBGA | 289-LFBGA | 289-LFBGA | 289-LFBGA |
| Supplier Device Package | 289-LFBGA (14x14) | 289-MAPBGA (14x14) | 289-MAPBGA (14x14) | 289-MAPBGA (14x14) | 289-MAPBGA (14x14) |
