| Part Number | MIMXRT1061XVN5B | MIMXRT1062XVN5B |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active |
| Core Processor | ARM® Cortex®-M7 | ARM® Cortex®-M7 |
| Core Size | 32-Bit | 32-Bit |
| Speed | 500MHz | 500MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 149 | 149 |
| Program Memory Size | 128KB (128K x 8) | 128KB (128K x 8) |
| Program Memory Type | ROM | ROM |
| EEPROM Size | - | - |
| RAM Size | 1M x 8 | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 20x12b | A/D 20x12b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

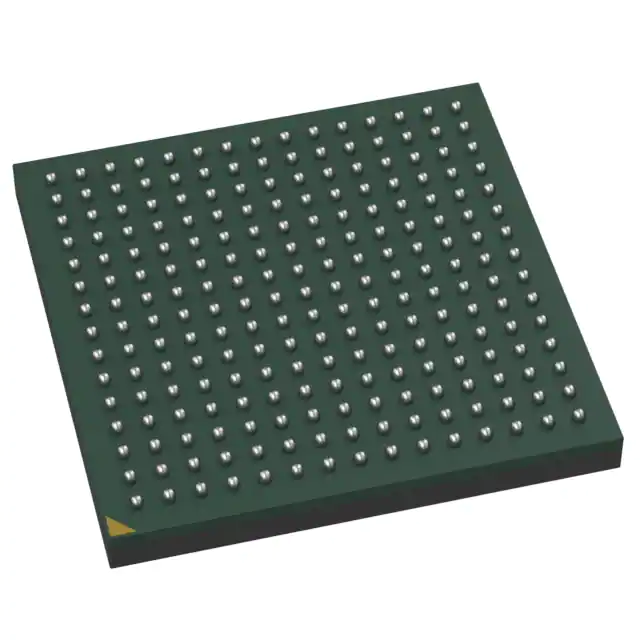

| Package / Case | 225-LFBGA | 225-LFBGA |
| Supplier Device Package | 225-MAPBGA (13x13) | 225-MAPBGA (13x13) |
