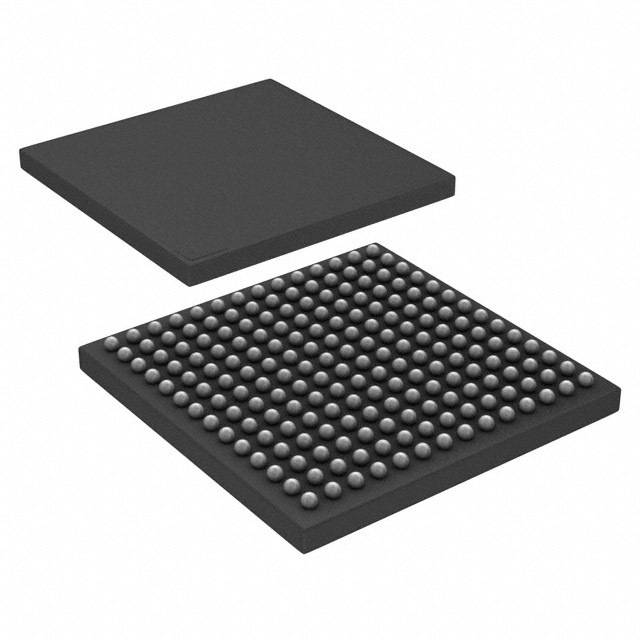

| Part Number | MIMXRT1052DVL6B | MIMXRT105SDVL6B | MIMXRT1062DVL6B | MIMXRT1052DVL6BR | MIMXRT1051DVL6B | MIMXRT1052DVJ6B | MIMXRT1052DVL6A |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 600MHz | 600MHz | 600MHz | 600MHz | 600MHz | 600MHz | 600MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 127 | 127 | 127 | 127 | 127 | 127 | 127 |
| Program Memory Size | - | - | - | - | - | - | - |
| Program Memory Type | External Program Memory | External Program Memory | External Program Memory | External Program Memory | External Program Memory | External Program Memory | External Program Memory |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 512K x 8 | 512K x 8 | 1M x 8 | 512K x 8 | 512K x 8 | 512K x 8 | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 20x12b | A/D 20x12b | A/D 20x12b | A/D 20x12b | A/D 20x12b | A/D 20x12b | A/D 20x12b |
| Oscillator Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Operating Temperature | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 196-LFBGA | 196-LFBGA | 196-LFBGA | 196-LFBGA | 196-LFBGA | 196-LFBGA | 196-LFBGA |
| Supplier Device Package | 196-LFBGA (10x10) | 196-MAPBGA (10x10) | 196-LFBGA (10x10) | 196-LFBGA (10x10) | 196-LFBGA (10x10) | 196-LFBGA (12x12) | 196-LFBGA (10x10) |
