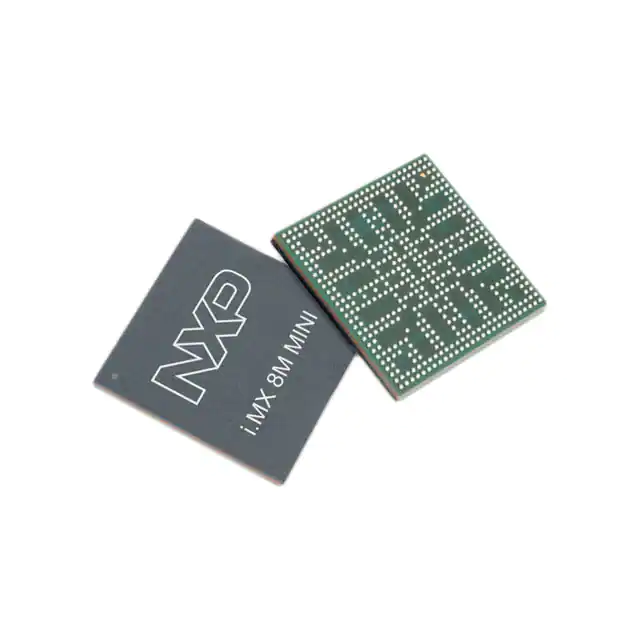

| Part Number | MIMX8MM3CVTKZAA | MIMX8MM6CVTKZAA | MIMX8MM5CVTKZAA | MIMX8MM4CVTKZAA | MIMX8MM1CVTKZAA | MIMX8MM2CVTKZAA |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-A53 | ARM® Cortex®-A53 | ARM® Cortex®-A53 | ARM® Cortex®-A53 | ARM® Cortex®-A53 | ARM® Cortex®-A53 |
| Number of Cores/Bus Width | 2 Core, 64-Bit | 4 Core, 64-Bit | 4 Core, 64-Bit | 2 Core, 64-Bit | 1 Core, 64-Bit | 1 Core, 64-Bit |
| Speed | 1.6GHz | 1.6GHz | 1.6GHz | 1.6GHz | 1.6GHz | 1.6GHz |
| Co-Processors/DSP | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| RAM Controllers | DDR3L, DDR4, LPDDR4 | DDR3L, DDR4, LPDDR4 | DDR3L, DDR4, LPDDR4 | DDR3L, DDR4, LPDDR4 | DDR3L, DDR4, LPDDR4 | DDR3L, DDR4, LPDDR4 |
| Graphics Acceleration | Yes | Yes | Yes | Yes | Yes | Yes |
| Display & Interface Controllers | MIPI-DSI | MIPI-DSI | MIPI-DSI | MIPI-DSI | MIPI-DSI | MIPI-DSI |
| Ethernet | GbE | GbE | GbE | GbE | GbE | GbE |
| SATA | - | - | - | - | - | - |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) |
| Security Features | ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS | ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS | ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS | ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS | ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS | ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS |
| Package / Case | 486-LFBGA, FCBGA | 486-LFBGA, FCBGA | 486-LFBGA, FCBGA | 486-LFBGA, FCBGA | 486-LFBGA, FCBGA | 486-LFBGA, FCBGA |
| Supplier Device Package | 486-LFBGA (14x14) | 486-LFBGA (14x14) | 486-LFBGA (14x14) | 486-LFBGA (14x14) | 486-LFBGA (14x14) | 486-LFBGA (14x14) |
