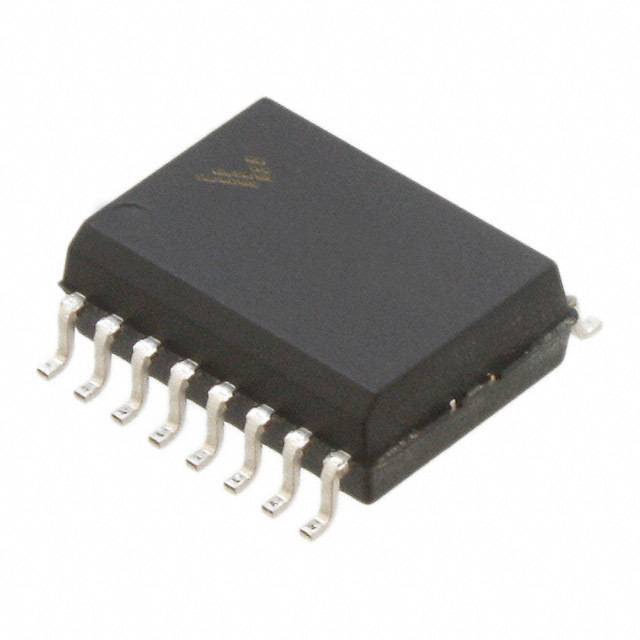

| Part Number | MCL908QY1DWE | MCL908QY4DWE | MCL908QY2DWE | MCL908QT1DWE | MCL908QY1CDWE |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Core Processor | HC08 | HC08 | HC08 | HC08 | HC08 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 2MHz | 2MHz | 2MHz | 2MHz | 2MHz |
| Connectivity | - | - | - | - | - |
| Peripherals | LVD, POR, PWM | LVD, POR, PWM | LVD, POR, PWM | LVD, POR, PWM | LVD, POR, PWM |
| Number of I/O | 13 | 13 | 13 | 5 | 13 |
| Program Memory Size | 1.5KB (1.5K x 8) | 4KB (4K x 8) | 1.5KB (1.5K x 8) | 1.5KB (1.5K x 8) | 1.5KB (1.5K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.4V ~ 3.6V |
| Data Converters | - | A/D 4x8b | A/D 4x8b | - | - |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 8-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC | 16-SOIC | 16-SOIC | 8-SO | 16-SOIC |
