Please send RFQ , we will respond immediately.
| Part Number | MCIMX6G2CVM05ABR | MCIMX6G1CVM05ABR | MCIMX6G2CVM05AB |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Core Processor | ARM® Cortex®-A7 | ARM® Cortex®-A7 | ARM® Cortex®-A7 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 528MHz | 528MHz | 528MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD |
| RAM Controllers | DDR3, DDR3L, LPDDR2 | LPDDR2, DDR3, DDR3L | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No | No | No |
| Display & Interface Controllers | LCD, LVDS | LVDS | LCD, LVDS |
| Ethernet | 10/100Mbps (2) | 10/100Mbps (1) | 10/100Mbps (2) |
| SATA | - | - | - |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V | 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V | 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) |
| Security Features | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS |

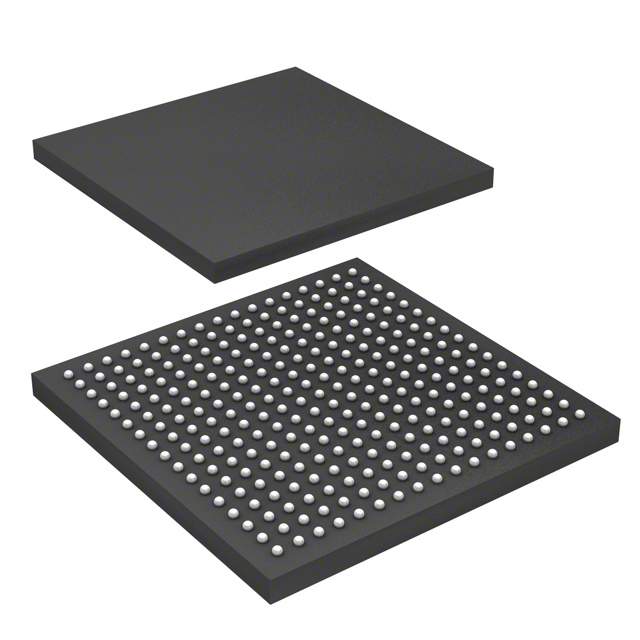

| Package / Case | 289-LFBGA | 289-LFBGA | 289-LFBGA |
| Supplier Device Package | 289-MAPBGA (14x14) | 289-MAPBGA (14x14) | 289-MAPBGA (14x14) |
