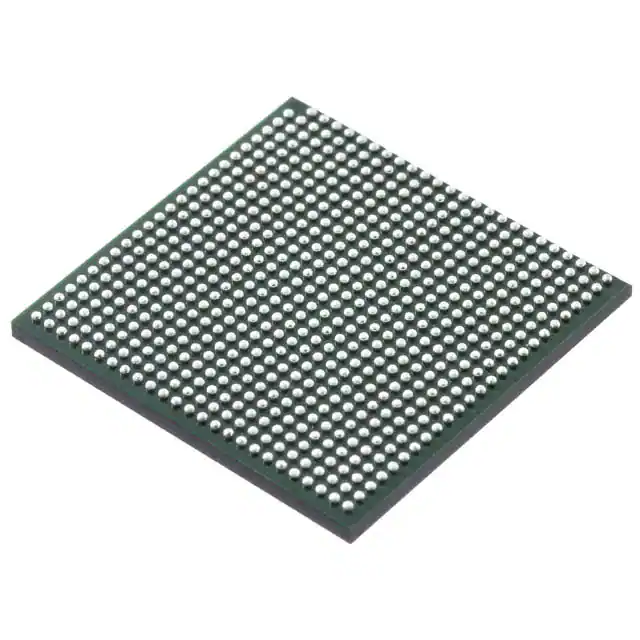

| Part Number | MCIMX6DP6AVT8AB | MCIMX6DP6AVT8ABR | MCIMX6DP4AVT8AB | MCIMX6DP6AVT1AB | MCIMX6DP6AVT8AA |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-A9 | ARM® Cortex®-A9 | ARM® Cortex®-A9 | ARM® Cortex®-A9 | ARM® Cortex®-A9 |
| Number of Cores/Bus Width | 2 Core, 32-Bit | 2 Core, 32-Bit | 2 Core, 32-Bit | 2 Core, 32-Bit | 2 Core, 32-Bit |
| Speed | 852MHz | 852MHz | 852MHz | 1.0GHz | 852MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR3L, DDR3 | LPDDR2, DDR3L, DDR3 | LPDDR2, DDR3L, DDR3 | LPDDR2, DDR3L, DDR3 | LPDDR2, DDR3L, DDR3 |
| Graphics Acceleration | Yes | Yes | Yes | Yes | Yes |
| Display & Interface Controllers | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel |
| Ethernet | 10/100/1000Mbps (1) | 10/100/1000Mbps (1) | 10/100/1000Mbps (1) | 10/100/1000Mbps (1) | 10/100/1000Mbps (1) |
| SATA | SATA 3Gbps (1) | SATA 3Gbps (1) | SATA 3Gbps (1) | SATA 3Gbps (1) | SATA 3Gbps (1) |
| USB | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V | 1.8V, 2.5V, 2.8V, 3.3V | 1.8V, 2.5V, 2.8V, 3.3V | 1.8V, 2.5V, 2.8V, 3.3V | 1.8V, 2.5V, 2.8V, 3.3V |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Security Features | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS |
| Package / Case | 624-FBGA, FCBGA | 624-FBGA, FCBGA | 624-FBGA, FCBGA | 624-FBGA, FCBGA | 624-FBGA, FCBGA |
| Supplier Device Package | 624-FCBGA (21x21) | 624-FCBGA (21x21) | 624-FCBGA (21x21) | 624-FCBGA (21x21) | 624-FCBGA (21x21) |
