Please send RFQ , we will respond immediately.

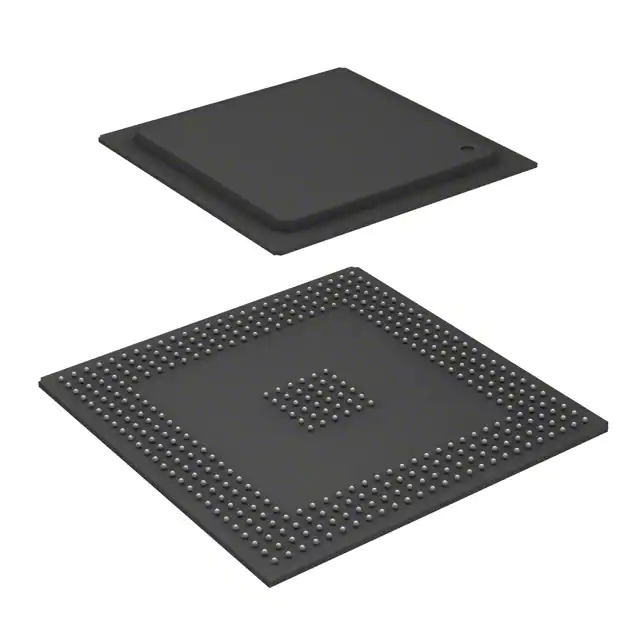

| Part Number | MCF5481CZP166 | MCF5482CZP166 | MCF5483CZP166 | MCF5480CZP166 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Motorola | NXP USA Inc. | Freescale Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Core Processor | Coldfire V4E | Coldfire V4E | Coldfire V4E | Coldfire V4E |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 166MHz | 166MHz | 166MHz | 166MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, SPI, UART/USART, USB | CANbus, EBI/EMI, Ethernet, I²C, SPI, UART/USART, USB | CANbus, EBI/EMI, Ethernet, I²C, SPI, UART/USART, USB | CANbus, EBI/EMI, Ethernet, I²C, SPI, UART/USART, USB |
| Peripherals | DMA, PWM, WDT | DMA, PWM, WDT | DMA, PWM, WDT | DMA, PWM, WDT |
| Number of I/O | 99 | 99 | 99 | 99 |
| Program Memory Size | - | - | - | - |
| Program Memory Type | ROMless | ROMless | ROMless | ROMless |
| EEPROM Size | - | - | - | - |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.43V ~ 1.58V | 1.43V ~ 1.58V | 1.43V ~ 1.58V | 1.43V ~ 1.58V |
| Data Converters | - | - | - | - |
| Oscillator Type | External | External | External | External |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 388-BBGA | 388-BBGA | 388-BBGA | 388-BBGA |
| Supplier Device Package | 388-PBGA (27x27) | 388-PBGA (27x27) | 388-PBGA (27x27) | 388-PBGA (27x27) |
