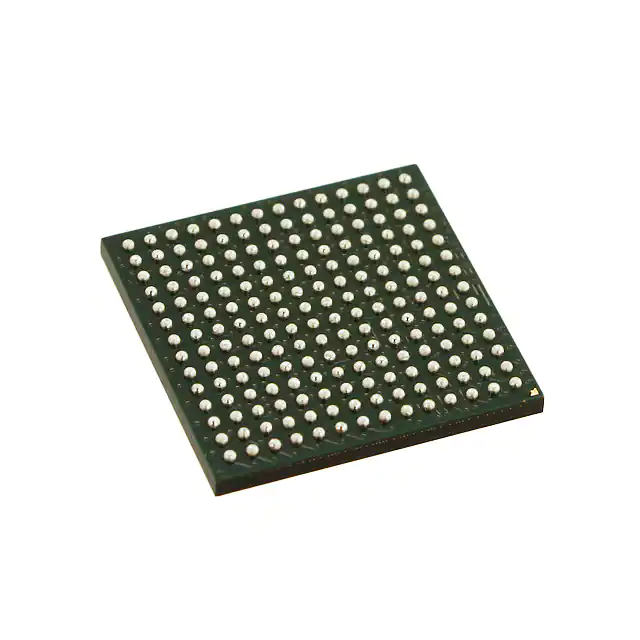

| Part Number | MCF5327CVM240 | MCF5328CVM240 | MCF5329CVM240 | MCF5327CVM240J |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Active |
| Core Processor | Coldfire V3 | Coldfire V3 | Coldfire V3 | Coldfire V3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 240MHz | 240MHz | 240MHz | 240MHz |
| Connectivity | EBI/EMI, I²C, SPI, SSI, UART/USART, USB, USB OTG | EBI/EMI, Ethernet, I²C, SPI, SSI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, SPI, SSI, UART/USART, USB, USB OTG | EBI/EMI, I²C, SPI, SSI, UART/USART, USB, USB OTG |
| Peripherals | DMA, LCD, PWM, WDT | DMA, LCD, PWM, WDT | DMA, LCD, PWM, WDT | DMA, LCD, PWM, WDT |
| Number of I/O | 94 | 94 | 94 | 94 |
| Program Memory Size | - | - | - | - |
| Program Memory Type | ROMless | ROMless | ROMless | ROMless |
| EEPROM Size | - | - | - | - |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.4V ~ 3.6V | 1.4V ~ 3.6V | 1.4V ~ 3.6V | 1.4V ~ 3.6V |
| Data Converters | - | - | - | - |
| Oscillator Type | External | External | External | External |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 196-LBGA | 256-LBGA | 256-LBGA | 196-BGA |
| Supplier Device Package | 196-LBGA (15x15) | 256-MAPBGA (17x17) | 256-MAPBGA (17x17) | 196-MAPBGA (15x15) |
