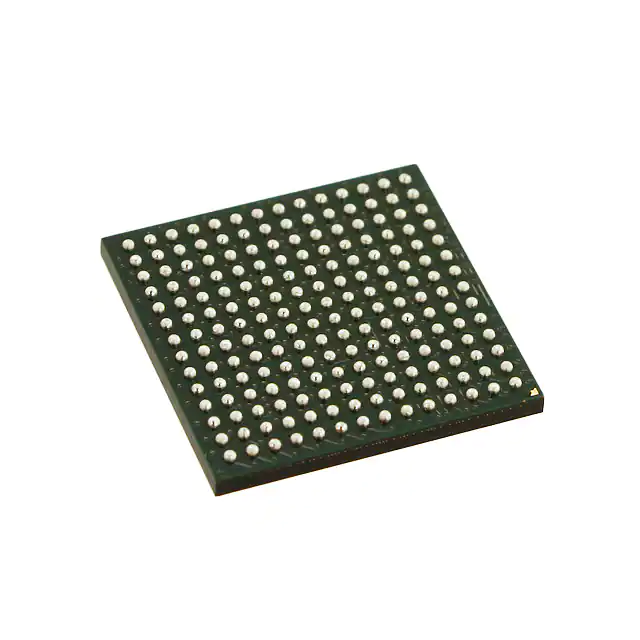

| Part Number | MCF5272VF66R2 | MCF5272VM66R2 | MCF5272VF66R2J |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Core Processor | Coldfire V2 | Coldfire V2 | Coldfire V2 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 66MHz | 66MHz | 66MHz |
| Connectivity | EBI/EMI, Ethernet, I²C, SPI, UART/USART, USB | EBI/EMI, Ethernet, I²C, SPI, UART/USART, USB | EBI/EMI, Ethernet, I²C, SPI, UART/USART, USB |
| Peripherals | DMA, WDT | DMA, WDT | DMA, WDT |
| Number of I/O | 32 | 32 | 32 |
| Program Memory Size | 16KB (4K x 32) | 16KB (4K x 32) | 16KB (4K x 32) |
| Program Memory Type | ROM | ROM | ROM |
| EEPROM Size | - | - | - |
| RAM Size | 1K x 32 | 1K x 32 | 1K x 32 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | - | - | - |
| Oscillator Type | External | External | External |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 196-LBGA | 196-LBGA | 196-LBGA |
| Supplier Device Package | 196-LBGA (15x15) | 196-LBGA (15x15) | 196-LBGA (15x15) |
