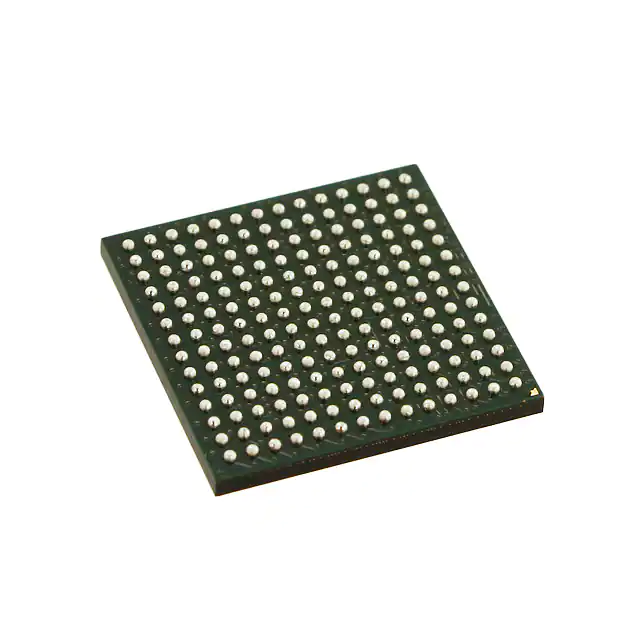

| Part Number | MCF5232CVM150 | MCF5234CVM150 | MCF5233CVM150 | MCF5235CVM150 | MCF5232CVM150J | MCF5232CVM100 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Obsolete | Not For New Designs |
| Core Processor | Coldfire V2 | Coldfire V2 | Coldfire V2 | Coldfire V2 | Coldfire V2 | Coldfire V2 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 150MHz | 150MHz | 150MHz | 150MHz | 150MHz | 100MHz |
| Connectivity | CANbus, EBI/EMI, I²C, SPI, UART/USART | CANbus, EBI/EMI, Ethernet, I²C, SPI, UART/USART | CANbus, EBI/EMI, I²C, SPI, UART/USART | CANbus, EBI/EMI, Ethernet, I²C, SPI, UART/USART | CANbus, EBI/EMI, I²C, SPI, UART/USART | CANbus, EBI/EMI, I²C, SPI, UART/USART |
| Peripherals | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT |
| Number of I/O | 97 | 97 | 97 | 97 | 97 | 97 |
| Program Memory Size | - | - | - | - | - | - |
| Program Memory Type | ROMless | ROMless | ROMless | ROMless | ROMless | ROMless |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.4V ~ 1.6V | 1.4V ~ 1.6V | 1.4V ~ 1.6V | 1.4V ~ 1.6V | 1.4V ~ 1.6V | 1.4V ~ 1.6V |
| Data Converters | - | - | - | - | - | - |
| Oscillator Type | External | External | External | External | External | External |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 196-LBGA | 256-LBGA | 256-LBGA | 256-LBGA | 196-LBGA | 196-LBGA |
| Supplier Device Package | 196-LBGA (15x15) | 256-MAPBGA (17x17) | 256-MAPBGA (17x17) | 256-MAPBGA (17x17) | 196-LBGA (15x15) | 196-LBGA (15x15) |
