Please send RFQ , we will respond immediately.

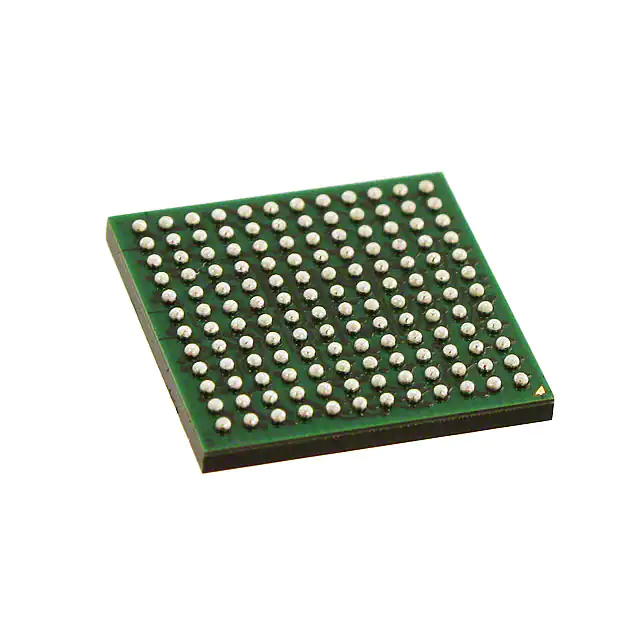

| Part Number | MCF52268VN80J | MCF52258VN80J | MCF52268VN80 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Core Processor | Coldfire V2 | Coldfire V2 | Coldfire V2 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 80MHz | 80MHz | 80MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, QSPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, QSPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, QSPI, UART/USART, USB OTG |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 96 | 96 | 96 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 64K x 8 | 64K x 8 | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 8x12b | A/D 8x12b | A/D 8x12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 144-LBGA | 144-LBGA | 144-LBGA |
| Supplier Device Package | 144-MAPBGA (13x13) | 144-MAPBGA (13x13) | 144-MAPBGA (13x13) |
