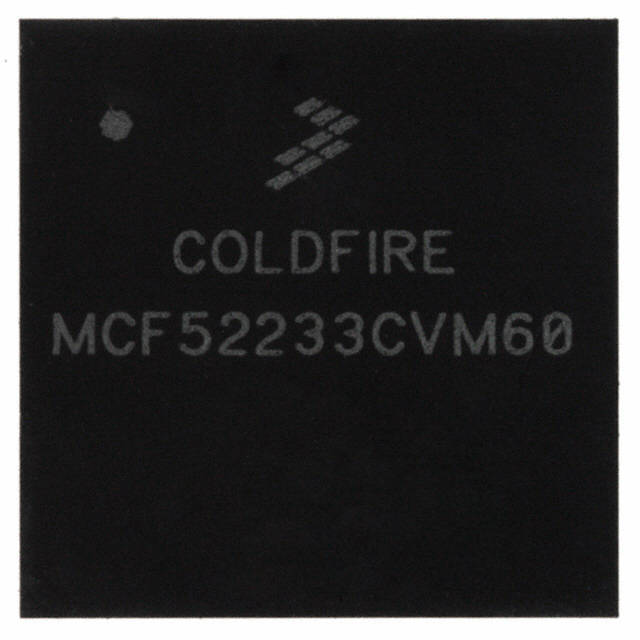

| Part Number | MCF52233CVM60J | MCF52234CVM60J |
|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor |
| Product Status | Obsolete | Obsolete |
| Core Processor | Coldfire V2 | Coldfire V2 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 60MHz | 60MHz |
| Connectivity | Ethernet, I²C, SPI, UART/USART | CANbus, Ethernet, I²C, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 80 | 80 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | - | - |
| RAM Size | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 8x12b | A/D 8x12b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 121-LBGA | 121-LBGA |
| Supplier Device Package | 121-MAPBGA (12x12) | 121-MAPBGA (12x12) |
