Please send RFQ , we will respond immediately.

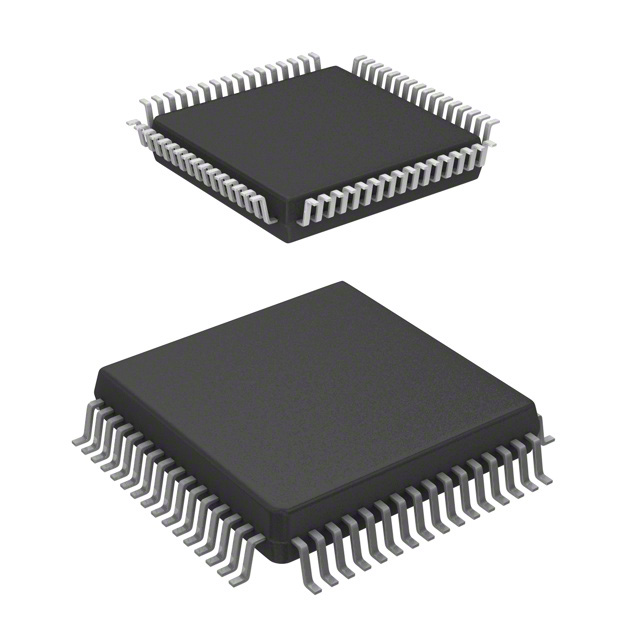

| Part Number | MCF51JM64VQH | MCF51JM64EVQH | MCF51JM64VLH |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. |
| Product Status | Active | Obsolete | Active |
| Core Processor | Coldfire V1 | Coldfire V1 | Coldfire V1 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 50MHz | 50MHz | 50MHz |
| Connectivity | CANbus, I²C, SCI, SPI, USB OTG | CANbus, I²C, SCI, SPI, USB OTG | CANbus, I²C, SCI, SPI, USB OTG |
| Peripherals | LVD, PWM, WDT | LVD, PWM, WDT | LVD, PWM, WDT |
| Number of I/O | 51 | 51 | 51 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 16K x 8 | 16K x 8 | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 12x12b | A/D 12x12b | A/D 12x12b |
| Oscillator Type | External | External | External |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-QFP | 64-QFP | 64-LQFP |
| Supplier Device Package | 64-QFP (14x14) | 64-QFP (14x14) | 64-LQFP (10x10) |
