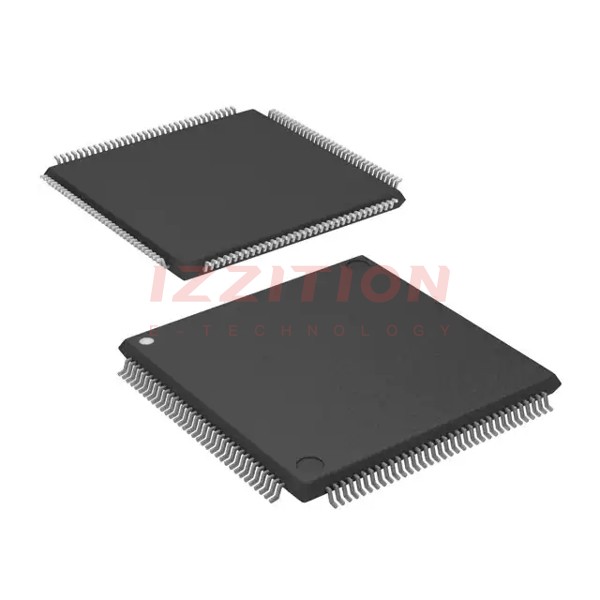

| Part Number | MC9S12XDT256VAG | MC9S12XDT256VAL | MC9S12XD256VAG | MC9S12XDT256CAG | MC9S12XDT256MAG | MC9S12XDT256VAA |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | Freescale Semiconductor | Freescale Semiconductor | Freescale Semiconductor |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Active |
| Core Processor | HCS12X | HCS12X | HCS12X | HCS12X | HCS12X | HCS12X |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 80MHz | 80MHz | 80MHz | 80MHz | 80MHz | 80MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 119 | 91 | 119 | 119 | 119 | 59 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 16K x 8 | 16K x 8 | 14K x 8 | 16K x 8 | 16K x 8 | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V | 2.35V ~ 5.5V | 2.35V ~ 5.5V | 2.35V ~ 5.5V | 2.35V ~ 5.5V | 2.35V ~ 5.5V |
| Data Converters | A/D 24x10b | A/D 16x10b | A/D 24x10b | A/D 24x10b | A/D 24x10b | A/D 8x10b |
| Oscillator Type | External | External | External | External | External | External |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 144-LQFP | 112-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 80-QFP |
| Supplier Device Package | 144-LQFP (20x20) | 112-LQFP (20x20) | 144-LQFP (20x20) | 144-LQFP (20x20) | 144-LQFP (20x20) | 80-QFP (14x14) |
