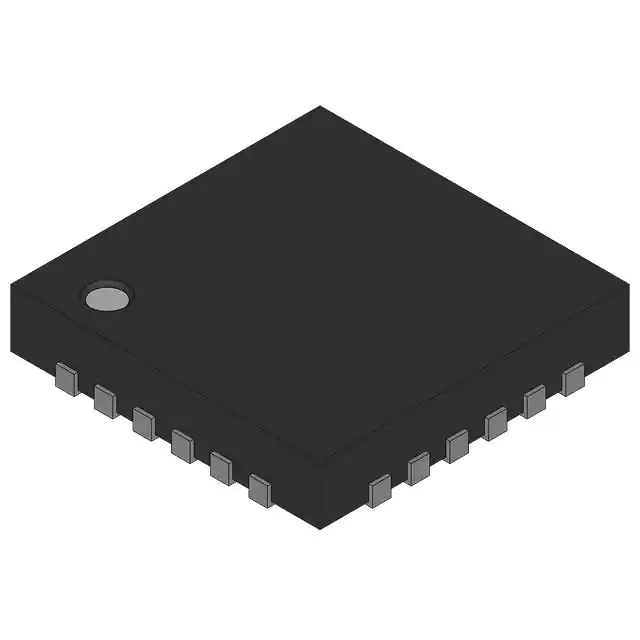

| Part Number | MC9S08QG4CFKE | MC9S08QG4CFQE | MC9S08QG8CFKE | MC9S08QG84CFKE | MC9S08QG44CFKE | MC9S08QG4CFFE |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active |
| Core Processor | S08 | S08 | S08 | S08 | S08 | S08 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, SCI, SPI | I²C, SCI, SPI | I²C, SCI, SPI | I²C, SCI, SPI | I²C, SCI, SPI | I²C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 12 | 4 | 12 | 12 | 12 | 12 |
| Program Memory Size | 4KB (4K x 8) | 4KB (4K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 4KB (4K x 8) | 4KB (4K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 256 x 8 | 256 x 8 | 512 x 8 | 512 x 8 | 256 x 8 | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b | A/D 4x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad | 8-VDFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 16-VQFN Exposed Pad |
| Supplier Device Package | 24-QFN-EP (4x4) | 8-DFN-EP (4x4) | 24-QFN-EP (4x4) | 24-QFN-EP (4x4) | 24-QFN-EP (4x4) | 16-QFN-EP (5x5) |
