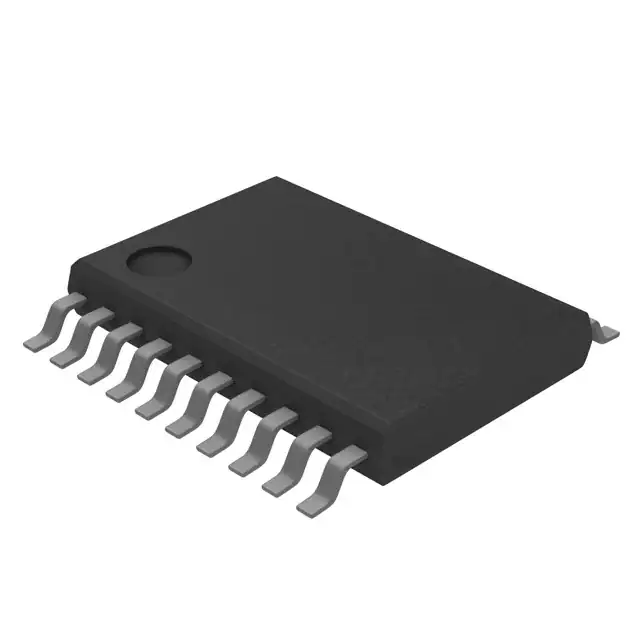

| Part Number | MC9S08PA8VTJ | MC9S08PT8VTJ | MC9S08PB8VTJ | MC9S08PA8VTJR | MC9S08PA8VWJ | MC9S08PA8AVTJ | MC9S08PA8VTG |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Not For New Designs | Active | Active | Not For New Designs | Not For New Designs | Active | Not For New Designs |
| Core Processor | S08 | S08 | S08 | S08 | S08 | S08 | S08 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 18 | 18 | 18 | 18 | 18 | 18 | 14 |
| Program Memory Size | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 256 x 8 | 256 x 8 | - | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 |
| RAM Size | 2K x 8 | 2K x 8 | 1K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 12x12b | A/D 12x12b | A/D 12x12b | A/D 12x12b | A/D 12x12b | A/D 12x12b | A/D 12x12b |
| Oscillator Type | Internal | Internal | External | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP | 20-TSSOP | 16-TSSOP | 20-TSSOP | 20-SOIC | 20-TSSOP | 16-TSSOP |
