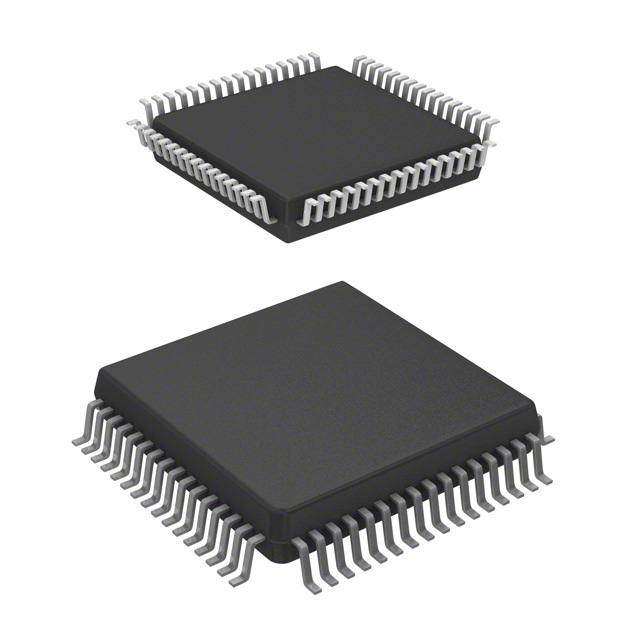

| Part Number | MC9S08AC60CFUE | MC9S08AW60CFUE | MC9S08AC60CPUE | MC9S08AC60MFUE | MC9S08AC60CFUER | MC9S08AC60CFDE | MC9S08AC60CFGE | MC9S08AC60CFJE |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | S08 | S08 | S08 | S08 | S08 | S08 | S08 | S08 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz |
| Connectivity | I²C, SCI, SPI | I²C, SCI, SPI | I²C, SCI, SPI | I²C, SCI, SPI | I²C, SCI, SPI | I²C, SCI, SPI | I²C, SCI, SPI | I²C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 54 | 54 | 54 | 54 | 54 | 38 | 34 | 22 |
| Program Memory Size | 60KB (60K x 8) | 60KB (60K x 8) | 60KB (60K x 8) | 60KB (60K x 8) | 60KB (60K x 8) | 60KB (60K x 8) | 60KB (60K x 8) | 60KB (60K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - |
| RAM Size | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 8x10b | A/D 8x10b | A/D 6x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-QFP | 64-QFP | 64-LQFP | 64-QFP | 64-QFP | 48-VFQFN Exposed Pad | 44-LQFP | 32-LQFP |
| Supplier Device Package | 64-QFP (14x14) | 64-QFP (14x14) | 64-LQFP (10x10) | 64-QFP (14x14) | 64-QFP (14x14) | 48-QFN-EP (7x7) | 44-LQFP (10x10) | 32-LQFP (7x7) |
