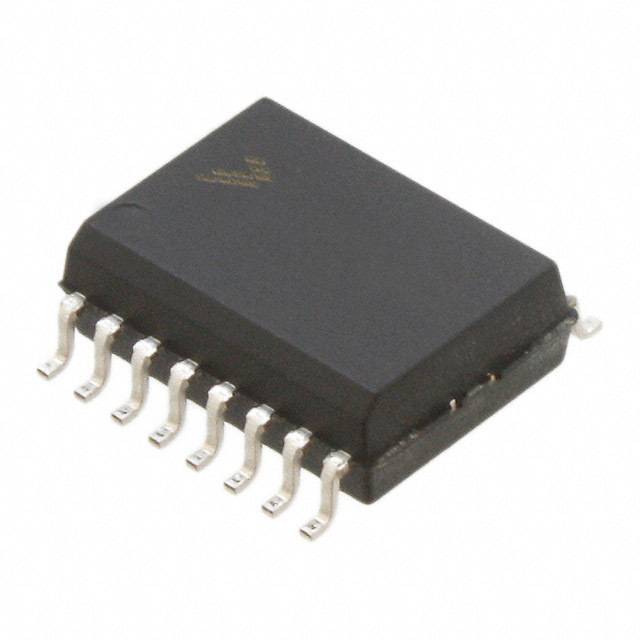

| Part Number | MC908QC8CDXE | MC908QC8CDZE | MC908QC8CDYE | MC908QC8CDXER | MC908QC8CDRE | MC908QC8CDSE | MC908QC8CDTE |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | HC08 | HC08 | HC08 | HC08 | HC08 | HC08 | HC08 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz |
| Connectivity | SCI, SPI | SCI, SPI | SCI, SPI | SCI, SPI | SCI, SPI | SCI, SPI | SCI, SPI |
| Peripherals | LVD, POR, PWM | LVD, POR, PWM | LVD, POR, PWM | LVD, POR, PWM | LVD, POR, PWM | LVD, POR, PWM | LVD, POR, PWM |
| Number of I/O | 12 | 24 | 16 | 12 | 24 | 16 | 12 |
| Program Memory Size | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 384 x 8 | 384 x 8 | 384 x 8 | 384 x 8 | 384 x 8 | 384 x 8 | 384 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 10x10b | A/D 10x10b | A/D 10x10b | A/D 10x10b | A/D 10x10b | A/D 10x10b | A/D 10x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 28-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-SOIC | 28-SOIC | 20-SOIC | 16-SOIC | 28-TSSOP | 20-TSSOP | 16-TSSOP |
