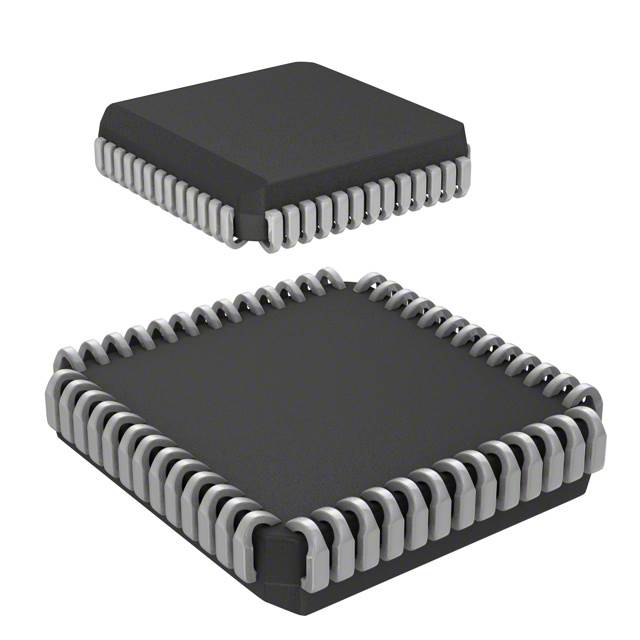

| Part Number | MC68HC11E1CFN2 | MC68HC11E1CFN3 | MC68HC11F1CFN2 | MC68HC11E1CFNE2 | MC68HC11E0CFN2 |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Motorola |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | HC11 | HC11 | HC11 | HC11 | HC11 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 2MHz | 3MHz | 2MHz | 3MHz | 2MHz |
| Connectivity | SCI, SPI | SCI, SPI | SCI, SPI | SCI, SPI | SCI, SPI |
| Peripherals | POR, WDT | POR, WDT | POR, WDT | POR, WDT | POR, WDT |
| Number of I/O | 38 | 38 | 30 | 38 | 38 |
| Program Memory Size | - | - | - | - | - |
| Program Memory Type | ROMless | ROMless | ROMless | ROMless | ROMless |
| EEPROM Size | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 | - |
| RAM Size | 512 x 8 | 512 x 8 | 1K x 8 | 512 x 8 | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.75V ~ 5.25V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Data Converters | A/D 8x8b | A/D 8x8b | A/D 8x8b | A/D 8x8b | A/D 8x8b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 52-LCC (J-Lead) | 52-LCC (J-Lead) | 68-LCC (J-Lead) | 52-LCC (J-Lead) | 52-LCC (J-Lead) |
| Supplier Device Package | 52-PLCC (19.1x19.1) | 52-PLCC (19.1x19.1) | 68-PLCC (24.21x24.21) | 52-PLCC (19.1x19.1) | 52-PLCC (19.13x19.13) |
