Please send RFQ , we will respond immediately.
| Part Number | MC68HC11E0CFNE2 | MC68HC11E0CFNE3 | MC68HC11E0CFNE2R | MC68HC11E1CFNE2 | MC68HC11E0MFNE2 | MC68HC11D0CFNE2 | MC68HC11E0CFN2 |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Motorola |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | HC11 | - | HC11 | HC11 | HC11 | HC11 | HC11 |
| Core Size | 8-Bit | - | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 2MHz | - | 2MHz | 3MHz | 2MHz | 2MHz | 2MHz |
| Connectivity | SCI, SPI | - | SCI, SPI | SCI, SPI | SCI, SPI | SCI, SPI | SCI, SPI |
| Peripherals | POR, WDT | - | POR, WDT | POR, WDT | POR, WDT | POR, WDT | POR, WDT |
| Number of I/O | 38 | - | 38 | 38 | 38 | 26 | 38 |
| Program Memory Size | - | - | - | - | - | - | - |
| Program Memory Type | ROMless | - | ROMless | ROMless | ROMless | ROMless | ROMless |
| EEPROM Size | - | - | - | 512 x 8 | - | - | - |
| RAM Size | 512 x 8 | - | 512 x 8 | 512 x 8 | 512 x 8 | 192 x 8 | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Data Converters | A/D 8x8b | - | A/D 8x8b | A/D 8x8b | A/D 8x8b | - | A/D 8x8b |
| Oscillator Type | Internal | - | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

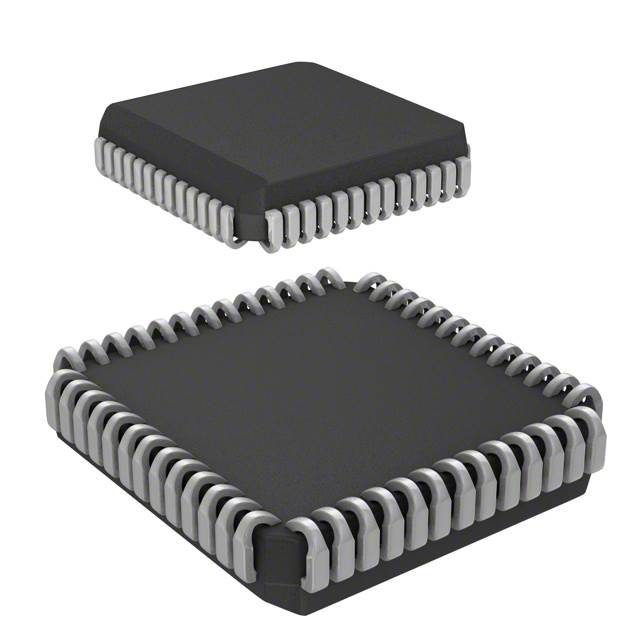

| Package / Case | 52-LCC (J-Lead) | - | 52-LCC (J-Lead) | 52-LCC (J-Lead) | 52-LCC (J-Lead) | 44-LCC (J-Lead) | 52-LCC (J-Lead) |
| Supplier Device Package | 52-PLCC (19.1x19.1) | - | 52-PLCC (19.1x19.1) | 52-PLCC (19.1x19.1) | 52-PLCC (19.1x19.1) | 44-PLCC (16.59x16.59) | 52-PLCC (19.13x19.13) |
