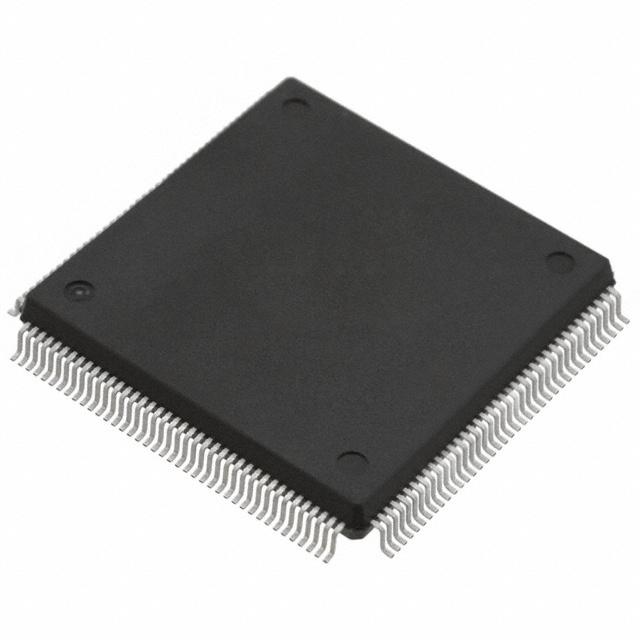

| Part Number | MC68376BGCAB25 | MC68376BGVAB25 | MC68376BACAB25 | MC68376BGCAB20 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Core Processor | CPU32 | CPU32 | CPU32 | CPU32 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 25MHz | 25MHz | 25MHz | 20MHz |
| Connectivity | CANbus, EBI/EMI, SCI, SPI | CANbus, EBI/EMI, SCI, SPI | CANbus, EBI/EMI, SCI, SPI | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 18 | 18 | 18 | 18 |
| Program Memory Size | - | - | - | - |
| Program Memory Type | ROMless | ROMless | ROMless | ROMless |
| EEPROM Size | - | - | - | - |
| RAM Size | 7.5K x 8 | 7.5K x 8 | 7.5K x 8 | 7.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Data Converters | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b |
| Oscillator Type | External | External | External | External |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 160-BQFP | 160-BQFP | 160-BQFP | 160-BQFP |
| Supplier Device Package | 160-QFP (28x28) | 160-QFP (28x28) | 160-QFP (28x28) | 160-QFP (28x28) |
