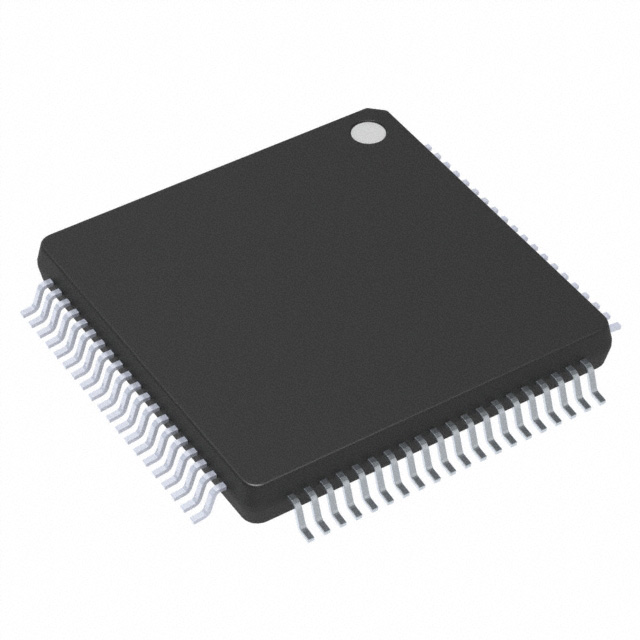

| Part Number | MC56F84766VLK | MC56F84786VLK | MC56F84766VLKR | MC56F83766VLK |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active |
| Core Processor | 56800EX | 56800EX | 56800EX | 56800EX |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 100MHz | 100MHz | 100MHz | 100MHz |
| Connectivity | CANbus, I²C, LINbus, SCI, SPI | CANbus, I²C, LINbus, SCI, SPI | CANbus, I²C, LINbus, SCI, SPI | CANbus, I²C, LINbus, SCI, SPI |
| Peripherals | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT |
| Number of I/O | 68 | 68 | 68 | 68 |
| Program Memory Size | 128KB (128K x 8) | 256KB (256K x 8) | 128KB (128K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | 2K x 8 | 2K x 8 | 2K x 8 | - |
| RAM Size | 24K x 8 | 32K x 8 | 24K x 8 | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 16x12b, 10x16b; D/A 1x12b | A/D 16x12b, 10x16b; D/A 1x12b | A/D 16x12b, 10x16b; D/A 1x12b | A/D 20x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 80-LQFP | 80-LQFP | 80-LQFP | 80-LQFP |
| Supplier Device Package | 80-FQFP (12x12) | 80-FQFP (12x12) | 80-FQFP (12x12) | 80-FQFP (12x12) |
