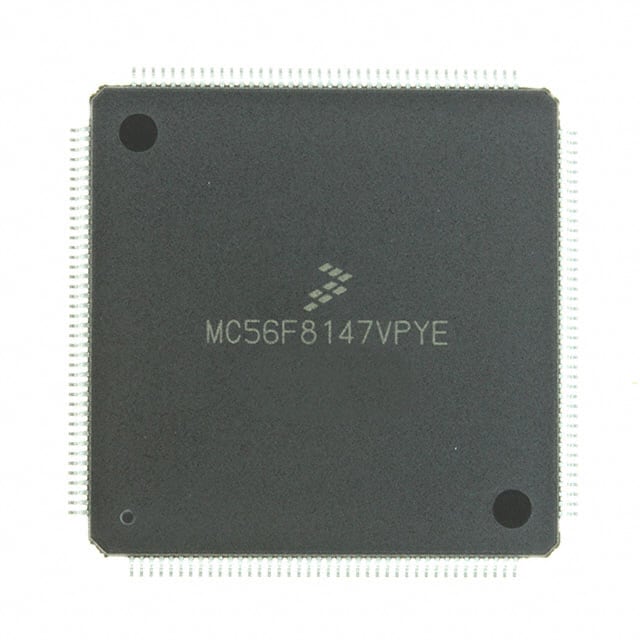

| Part Number | MC56F8357VPYE | MC56F8367VPYE | MC56F8157VPYE | MC56F8347VPYE | MC56F8357MPYE |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Obsolete | Active |
| Core Processor | 56800E | 56800E | 56800E | 56800E | 56800E |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 60MHz | 60MHz | 40MHz | 60MHz | 60MHz |
| Connectivity | CANbus, EBI/EMI, SCI, SPI | CANbus, EBI/EMI, SCI, SPI | EBI/EMI, SCI, SPI | CANbus, EBI/EMI, SCI, SPI | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT |
| Number of I/O | 76 | 76 | 76 | 76 | 76 |
| Program Memory Size | 256KB (128K x 16) | 512KB (256K x 16) | 256KB (128K x 16) | 128KB (64K x 16) | 256KB (128K x 16) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 10K x 16 | 18K x 16 | 8K x 16 | 6K x 16 | 10K x 16 |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V |
| Data Converters | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 16x12b |
| Oscillator Type | External | External | External | External | External |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 160-LQFP | 160-LQFP | 160-LQFP | 160-LQFP | 160-LQFP |
| Supplier Device Package | 160-LQFP (24x24) | 160-LQFP (24x24) | 160-LQFP (24x24) | 160-LQFP (24x24) | 160-LQFP (24x24) |
