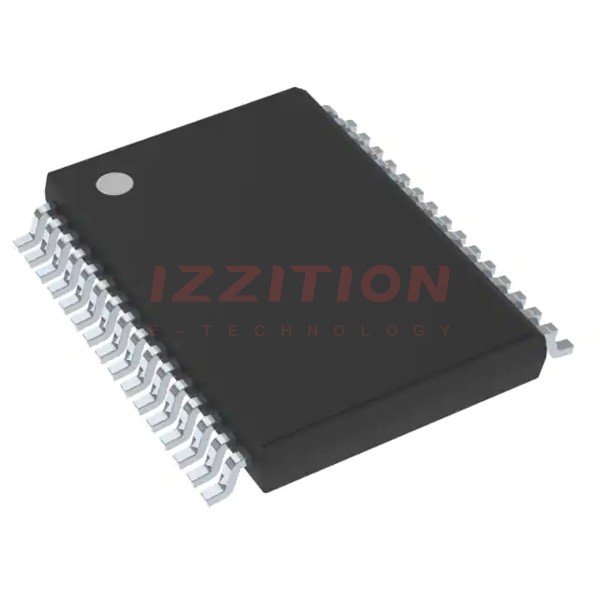

| Part Number | MC50XSD200BEK | MC50XS4200BEK |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 2 | 2 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | SPI | SPI |
| Voltage - Load | 8V ~ 36V | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3.3V ~ 5V | 3.3V ~ 5V |
| Current - Output (Max) | 1.2A | 1.2A |
| Rds On (Typ) | 50mOhm | 50mOhm |
| Input Type | - | - |
| Features | Slew Rate Controlled | Slew Rate Controlled |
| Fault Protection | Open Load Detect, Over Temperature | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 32-HSOP | 32-HSOP |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
