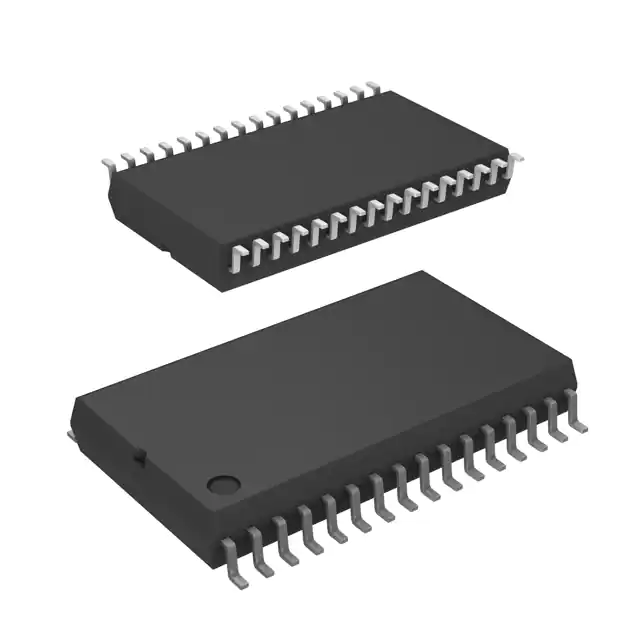

| Part Number | MC34931EKR2 | MC34932EKR2 | MC33931EKR2 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Motor Type - Stepper | - | - | - |
| Motor Type - AC, DC | Brushed DC, DC Servo | Brushed DC, DC Servo | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) | Half Bridge (4) | Half Bridge (2) |
| Interface | Logic | Logic | Parallel |
| Technology | Power MOSFET | Power MOSFET | CMOS |
| Step Resolution | - | - | - |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose | Automotive |
| Current - Output | 5A | 5A | 5A |
| Voltage - Supply | 5V ~ 36V | 5V ~ 36V | 5V ~ 28V |
| Voltage - Load | 5V ~ 36V | 5V ~ 36V | 5V ~ 28V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | 54-SSOP (0.295", 7.50mm Width) Exposed Pad | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 32-SOIC-EP | 54-SOIC-EP | 32-SOIC-EP |
