| Part Number | MC34845BEPR2 | MC34845EPR2 | MC34845CEPR2 | MC34845DEPR2 | MC34845AEPR2 |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 6 | 6 | 6 | 6 | 6 |
| Voltage - Supply (Min) | 5V | 5V | 5V | 5V | 5V |
| Voltage - Supply (Max) | 21V | 21V | 21V | 21V | 21V |
| Voltage - Output | 8V ~ 60V | 8V ~ 60V | 8V ~ 60V | 8V ~ 60V | 8V ~ 60V |
| Current - Output / Channel | 2.6A (Switch) | 2.3A (Switch) | 2.3A (Switch) | 2.6A (Switch) | 2.3A (Switch) |
| Frequency | 300kHz | 600kHz | 600kHz | 300kHz | 1.2MHz |
| Dimming | PWM | PWM | PWM | PWM | PWM |
| Applications | Backlight | Backlight | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

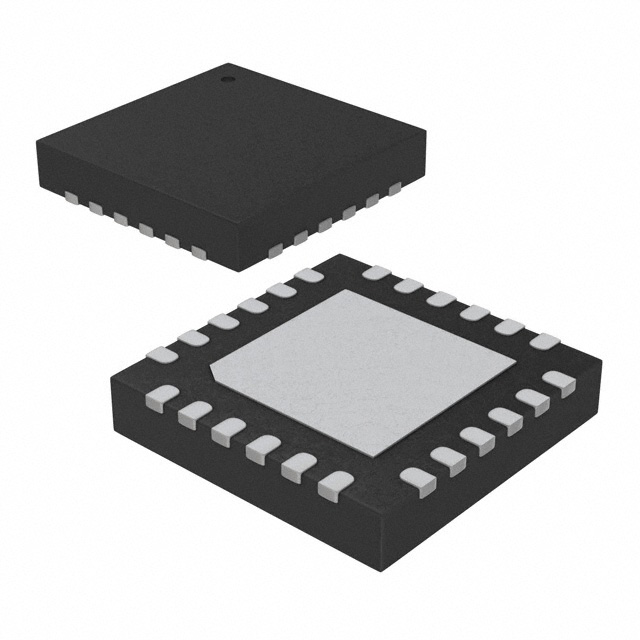

| Package / Case | 24-UFQFN Exposed Pad | 24-UFQFN Exposed Pad | 24-UFQFN Exposed Pad | 24-UFQFN Exposed Pad | 24-UFQFN Exposed Pad |
| Supplier Device Package | 24-QFN-EP (4x4) | 24-QFN-EP (4x4) | 24-QFN-EP (4x4) | 24-QFN-EP (4x4) | 24-QFN-EP (4x4) |
