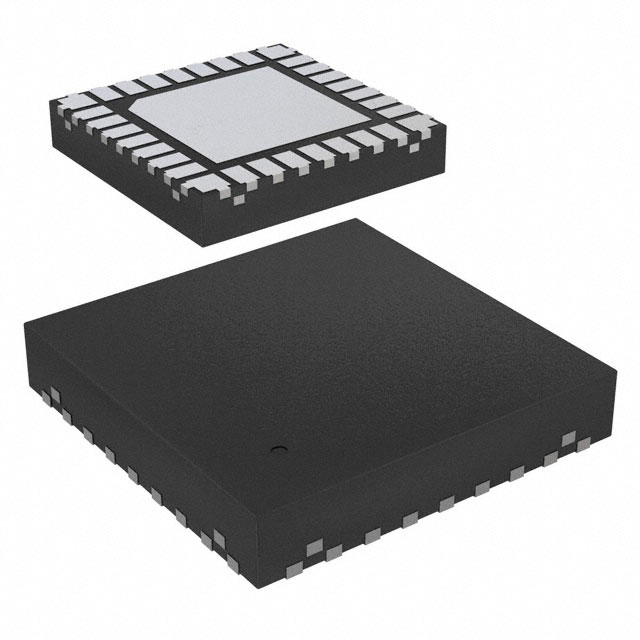

| Part Number | MC33HB2001FK | MC33HB2000FK | MC33HB2001EK |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Output Configuration | Half Bridge (2) | Half Bridge | Half Bridge (2) |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | SPI | Logic, PWM, SPI | SPI |
| Load Type | Inductive | Inductive | Inductive |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET |
| Rds On (Typ) | 125mOhm LS (Max), 125mOhm HS (Max) | 235mOhm LS + HS (Max) | 125mOhm LS (Max), 125mOhm HS (Max) |
| Current - Output / Channel | - | 3A | - |
| Current - Peak Output | - | 16A | - |
| Voltage - Supply | 5V ~ 28V | 3.3V ~ 5V | 5V ~ 28V |
| Voltage - Load | 5V ~ 28V | 5V ~ 28V | 5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | Slew Rate Controlled | Charge Pump, Slew Rate Controlled, Status Flag | Slew Rate Controlled |
| Fault Protection | Over Temperature, Over Voltage, UVLO | Over Temperature, Short Circuit, UVLO | Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-PowerQFN | 32-PowerQFN | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 32-PQFN (8x8) | 32-PQFN (8x8) | 32-SOIC-EP |
