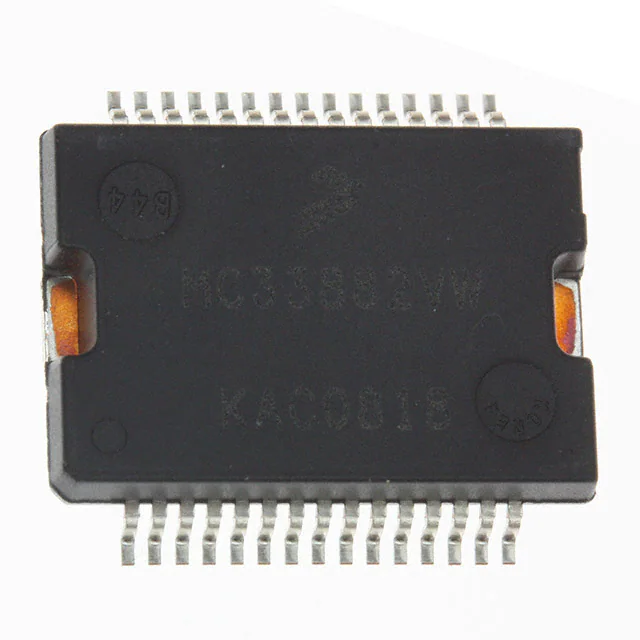

| Part Number | MC33882VWR2 | MC33882PVWR2 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 6 | 6 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |
| Interface | SPI, Parallel | SPI, Parallel |
| Voltage - Load | 8V ~ 25V | 8V ~ 25V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Output (Max) | - | - |
| Rds On (Typ) | 400mOhm | 400mOhm |
| Input Type | - | - |
| Features | - | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 30-HSOP | 30-HSOP |
| Package / Case | 30-BSOP (0.433", 11.00mm Width) Exposed Pad | 30-BSOP (0.433", 11.00mm Width) Exposed Pad |
