Please send RFQ , we will respond immediately.

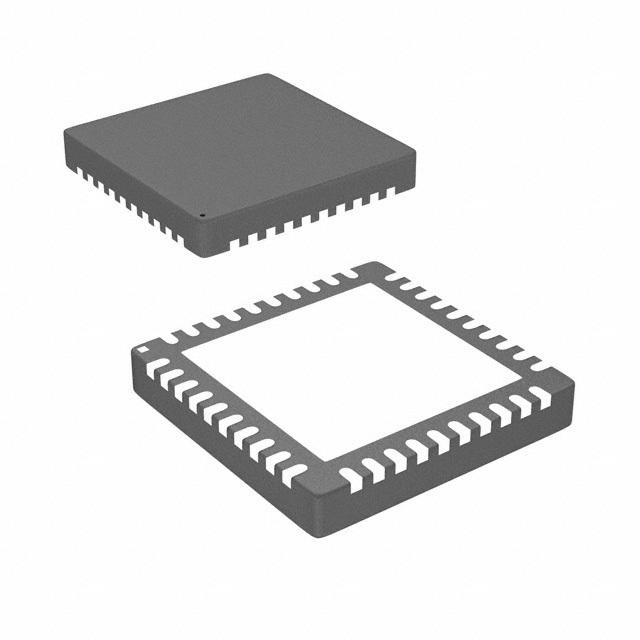

| Part Number | MC33696FCAE | MC33696FCE | MC33696FJAE |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Not For New Designs | Obsolete |
| Type | TxRx Only | TxRx Only | TxRx Only |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz |
| Protocol | - | - | - |
| Modulation | FSK, OOK | FSK, OOK | FSK, OOK |
| Frequency | 290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz | 290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz | 290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz |
| Data Rate (Max) | 22.6kbps | 22.6kbps | 22.6kbps |
| Power - Output | 7.25dBm | 7.25dBm | 7.25dBm |
| Sensitivity | -106.5dBm | -106.5dBm | -106.5dBm |
| Memory Size | - | - | - |
| Serial Interfaces | SPI | SPI | SPI |
| GPIO | - | - | - |
| Voltage - Supply | 2.1V ~ 3.6V | 2.7V ~ 3.6V | 2.1V ~ 3.6V |
| Current - Receiving | 10.3mA ~ 24mA | 10.3mA ~ 24mA | 10.3mA ~ 24mA |
| Current - Transmitting | 6.1mA ~ 13.5mA | 6.1mA ~ 13.5mA | 6.1mA ~ 13.5mA |
| Operating Temperature | -20°C ~ 85°C | -40°C ~ 85°C | -20°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN-EP (5x5) | 32-QFN-EP (5x5) | 32-QFN-EP (5x5) |
