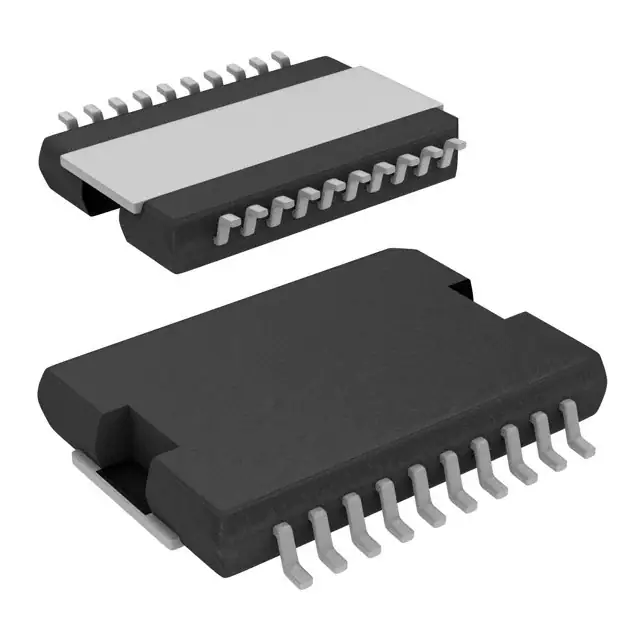

| Part Number | MC33186VW1 | MC33186HVW1 |
|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge (2) | - |
| Applications | DC Motors, General Purpose, Solenoids | - |
| Interface | Logic | - |
| Load Type | Inductive | - |
| Technology | Bi-CMOS | - |
| Rds On (Typ) | 150mOhm | 150mOhm |
| Current - Output / Channel | 5A | 5A |
| Current - Peak Output | - | 6.5A |
| Voltage - Supply | 5V ~ 28V | 5V ~ 28V |
| Voltage - Load | 5V ~ 28V | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C |
| Features | Status Flag | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Supplier Device Package | 20-HSOP | 20-HSOP |
