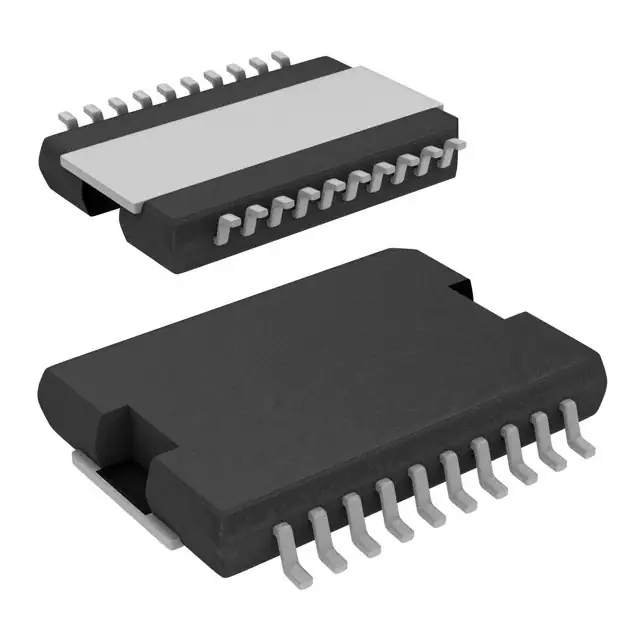

| Part Number | MC33186DH2 | MC33186DH1 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge (2) | Half Bridge (2) |
| Applications | DC Motors, General Purpose, Solenoids | DC Motors, General Purpose, Solenoids |
| Interface | Logic | Logic |
| Load Type | Inductive | Inductive |
| Technology | Bi-CMOS | Bi-CMOS |
| Rds On (Typ) | 150mOhm | 150mOhm |
| Current - Output / Channel | 5A | 5A |
| Current - Peak Output | - | - |
| Voltage - Supply | 5V ~ 28V | 5V ~ 28V |
| Voltage - Load | 5V ~ 28V | 5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | Status Flag | Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Supplier Device Package | 20-HSOP | 20-HSOP |
