Please send RFQ , we will respond immediately.

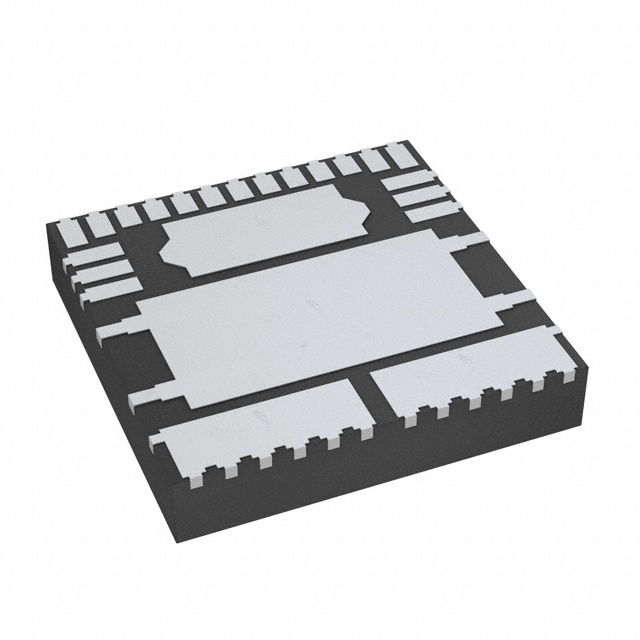

| Part Number | MC10XSD200BFKR2 | MC10XSD200FKR2 | MC16XSD200BFKR2 | MC10XS4200BFKR2 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 2 | 2 | 2 | 2 |
| Ratio - Input:Output | - | 1:1 | - | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | - | N-Channel | - | N-Channel |
| Interface | SPI | SPI | SPI | SPI |
| Voltage - Load | 8V ~ 36V | 8V ~ 36V | 8V ~ 36V | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Current - Output (Max) | 6A | 6A | 3A | 6A |
| Rds On (Typ) | 10mOhm | 10mOhm | 16mOhm | 10mOhm (Max) |
| Input Type | - | - | - | - |
| Features | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | - | Internal PWM, Slew Rate Controlled, Watchdog Timer |
| Fault Protection | Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 23-PQFN (12x12) | 23-PQFN (12x12) | 23-PQFN (12x12) | 23-PQFN (12x12) |
| Package / Case | 23-PowerQFN | 23-PowerQFN | 23-PowerQFN | 23-PowerQFN |
