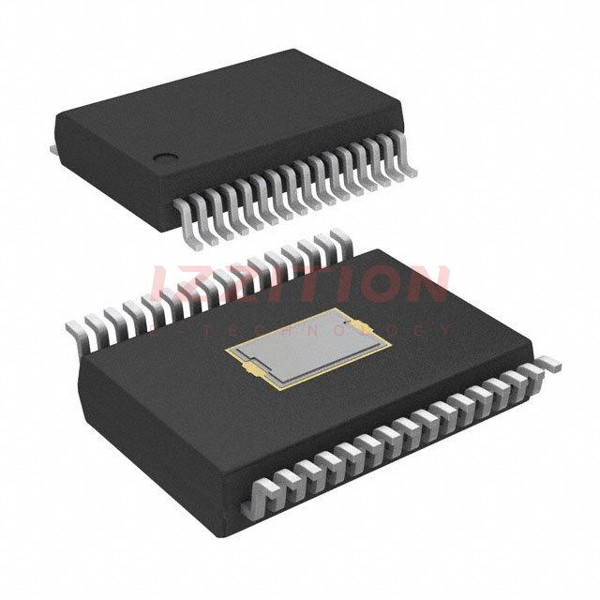

| Part Number | MC10XS6325BEKR2 | MC10XS6325EKR2 | MC10XS6225BEKR2 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 3 | 3 | 2 |
| Ratio - Input:Output | - | - | - |
| Output Configuration | High Side | High Side | High Side |
| Output Type | - | - | - |
| Interface | SPI | SPI | SPI |
| Voltage - Load | 7V ~ 18V | 7V ~ 18V | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Output (Max) | 4.5A, 9A | 3.8A, 9A | 4.5A, 9A |
| Rds On (Typ) | 10mOhm, 25mOhm | 10mOhm, 25mOhm | 10mOhm, 25mOhm |
| Input Type | - | - | - |
| Features | Status Flag | Status Flag | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature | Open Load Detect, Over Temperature | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 32-SOIC-EP | 32-HSOP | 32-SOIC-EP |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
