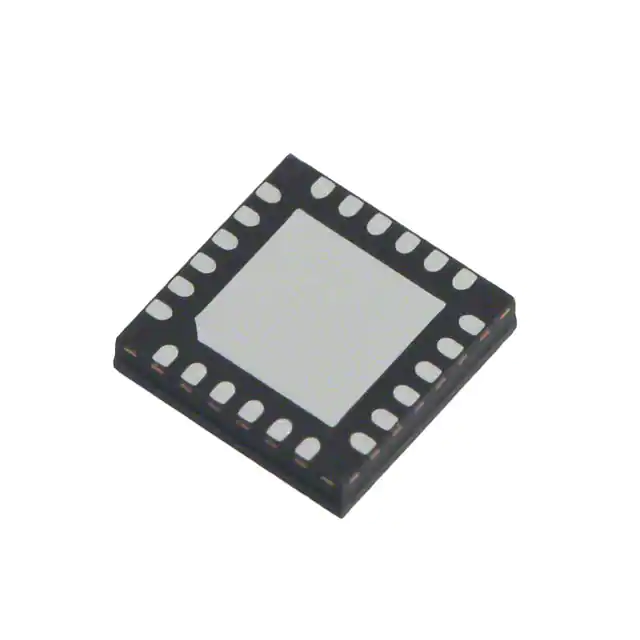

| Part Number | MC10XS3435DPNAR2 | MC10XS3435BPNAR2 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 4 | 4 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | SPI | SPI |
| Voltage - Load | 6V ~ 20V | 6V ~ 20V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V |
| Current - Output (Max) | 6A | 6A |
| Rds On (Typ) | 10mOhm (Max), 35mOhm (Max) | 10mOhm (Max), 35mOhm (Max) |
| Input Type | - | - |
| Features | Internal PWM, Slew Rate Controlled, Watchdog Timer | Internal PWM, Slew Rate Controlled, Watchdog Timer |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 24-PQFN (12x12) | 24-PQFN (12x12) |
| Package / Case | 24-PowerQFN | 24-PowerQFN |
