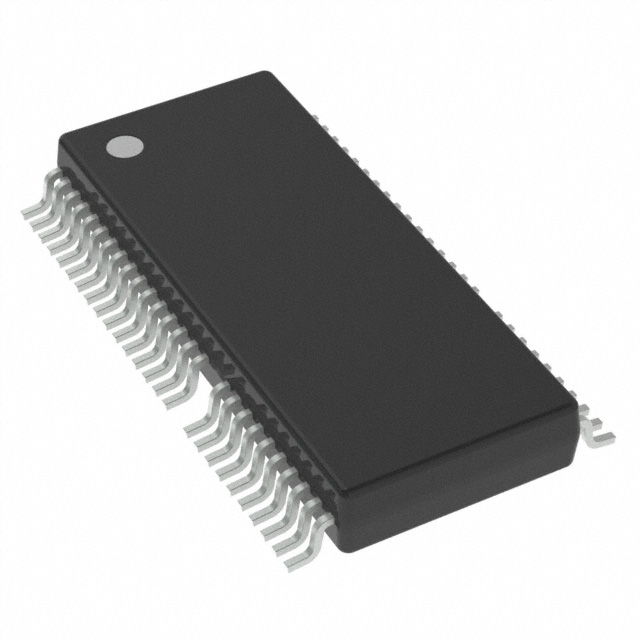

| Part Number | MC08XS6421CEKR2 | MC08XS6421EKR2 | MC08XS6421DEKR2 | MC08XS6421BEKR2 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 4 | 4 | 6 | 4 |
| Ratio - Input:Output | 1:1 | 1:1 | 2:3 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | SPI | SPI | SPI | SPI |
| Voltage - Load | 7V ~ 18V | 7V ~ 18V | 7V ~ 18V | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A, 11A | 5.5A, 11A | 5.5A, 11A | 5.5A, 11A |
| Rds On (Typ) | 8mOhm, 21mOhm | 8mOhm, 21mOhm | 8mOhm, 21mOhm | 8mOhm, 21mOhm |
| Input Type | CMOS | - | - | - |
| Features | - | Slew Rate Controlled | Internal PWM | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature | Current Limiting (Fixed), Open Load Detect, Over Temperature | Current Limiting (Fixed), Open Load Detect, Over Temperature | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 54-HSOP | 32-HSOP | 32-HSOP | 32-HSOP |
| Package / Case | 54-SSOP (0.295", 7.50mm Width) Exposed Pad | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
