Please send RFQ , we will respond immediately.

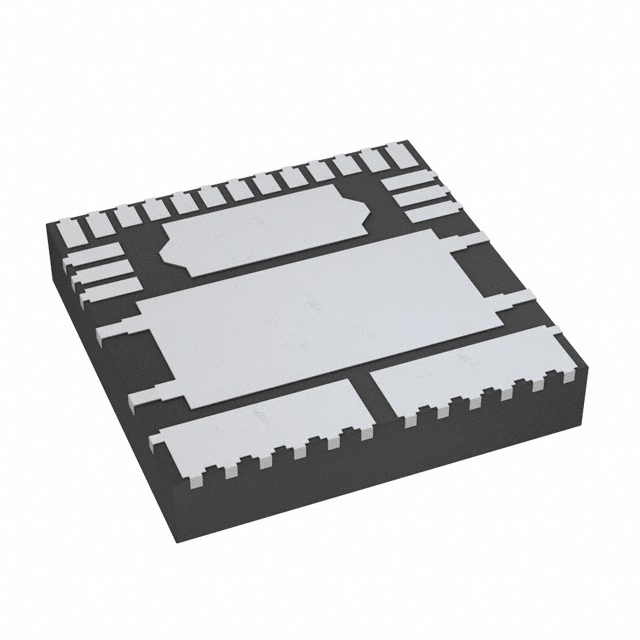

| Part Number | MC06XS4200FKR2 | MC06XSD200FKR2 | MC06XS4200BFKR2 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 2 | 2 | 2 |
| Ratio - Input:Output | 1:1 | 1:2 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | SPI | SPI | SPI |
| Voltage - Load | 8V ~ 36V | 8V ~ 36V | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Current - Output (Max) | 9A | 9A | 9A |
| Rds On (Typ) | 6mOhm (Max) | 6mOhm | 6mOhm (Max) |
| Input Type | - | - | - |
| Features | Internal PWM, Slew Rate Controlled | Internal PWM, Slew Rate Controlled | Internal PWM, Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 23-PQFN (12x12) | 23-PQFN (12x12) | 23-PQFN (12x12) |
| Package / Case | 23-PowerQFN | 23-PowerQFN | 23-PowerQFN |
