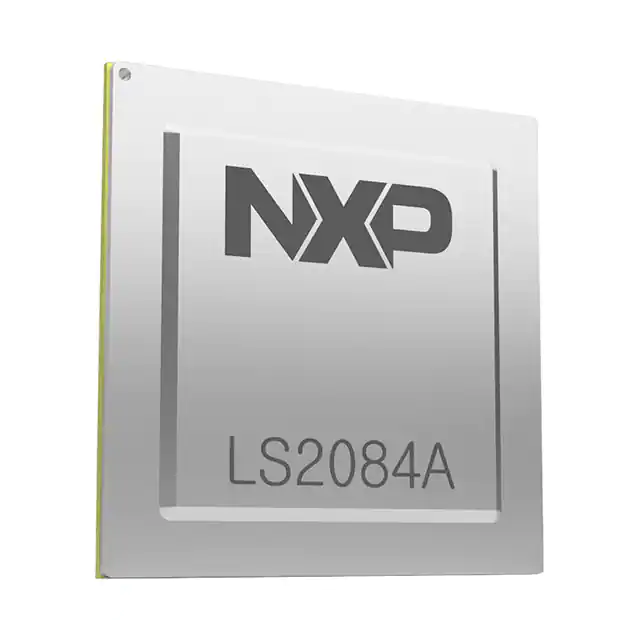

| Part Number | LS2084AXN7V1B | LS2088AXN7V1B | LS2084AXE7V1B |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Core Processor | ARM® Cortex®-A72 | ARM® Cortex®-A72 | ARM® Cortex®-A72 |
| Number of Cores/Bus Width | 8 Core, 64-Bit | 8 Core, 64-Bit | 8 Core, 64-Bit |
| Speed | 2.0GHz | 2.0GHz | 2.0GHz |
| Co-Processors/DSP | - | - | - |
| RAM Controllers | DDR4 | DDR4 | DDR4 |
| Graphics Acceleration | - | - | - |
| Display & Interface Controllers | - | - | - |
| Ethernet | 10GbE (8) or 1GbE (16) & 2.5GbE (1) | 10GbE (8) or 1GbE (16) & 2.5GbE (1) | 10GbE (8) or 1GbE (16) & 2.5GbE (1) |
| SATA | SATA (2) | SATA 6Gbps (2) | SATA (2) |
| USB | USB 3.0 (2) + PHY | USB 3.0 (2) + PHY | USB 3.0 (2) + PHY |
| Voltage - I/O | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Security Features | Secure Boot, TrustZone® | - | Secure Boot, TrustZone® |
| Package / Case | 1292-BFBGA, FCBGA | 1292-BFBGA, FCBGA | 1292-BFBGA, FCBGA |
| Supplier Device Package | 1292-FCPBGA (37.5x37.5) | 1292-FCPBGA (37.5x37.5) | 1292-FCPBGA (37.5x37.5) |
