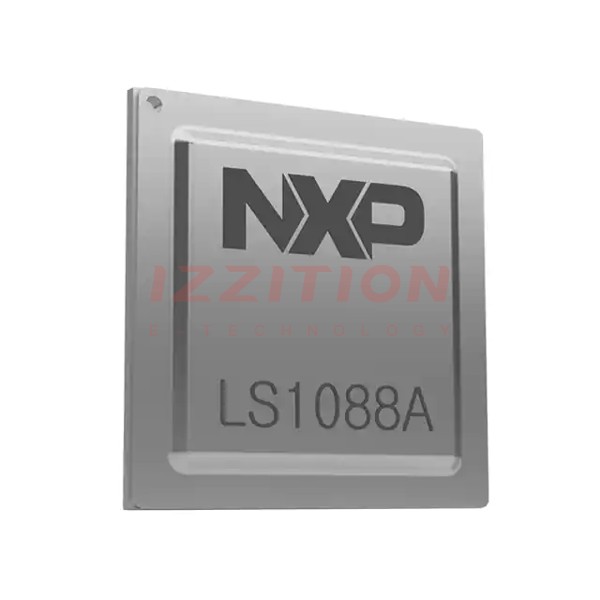

| Part Number | LS1088AXN7MQA | LS1048AXN7MQA | LS1088AXE7MQA |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Core Processor | ARM® Cortex®-A53 | ARM® Cortex®-A53 | ARM® Cortex®-A53 |
| Number of Cores/Bus Width | 8 Core, 64-Bit | 4 Core, 64-Bit | 8 Core, 64-Bit |
| Speed | 1.2GHz | 1.2GHz | 1.2GHz |
| Co-Processors/DSP | - | - | - |
| RAM Controllers | DDR4 | DDR4 | DDR4 |
| Graphics Acceleration | - | - | - |
| Display & Interface Controllers | - | - | - |
| Ethernet | 10GbE (2), 1GbE (8) | 10GbE (2), 1GbE (8) | 10GbE (2), 1GbE (8) |
| SATA | SATA 6Gbps (1) | SATA 6Gbps (1) | SATA 6Gbps (1) |
| USB | USB 3.0 (2) + PHY | USB 3.0 (2) + PHY | USB 3.0 (2) + PHY |
| Voltage - I/O | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Security Features | Secure Boot, TrustZone® | Secure Boot, TrustZone® | Secure Boot, TrustZone® |
| Package / Case | 780-BFBGA, FCBGA | 780-BFBGA, FCBGA | 780-BFBGA, FCBGA |
| Supplier Device Package | 780-FBGA (23x23) | 780-FBGA (23x23) | 780-FBGA (23x23) |
